PSU 850W BE QUIET! DARK POWER 13 w/PCIe 5.0, 80 Plus TITANIUM FULL MODULAR, BN334

Опис

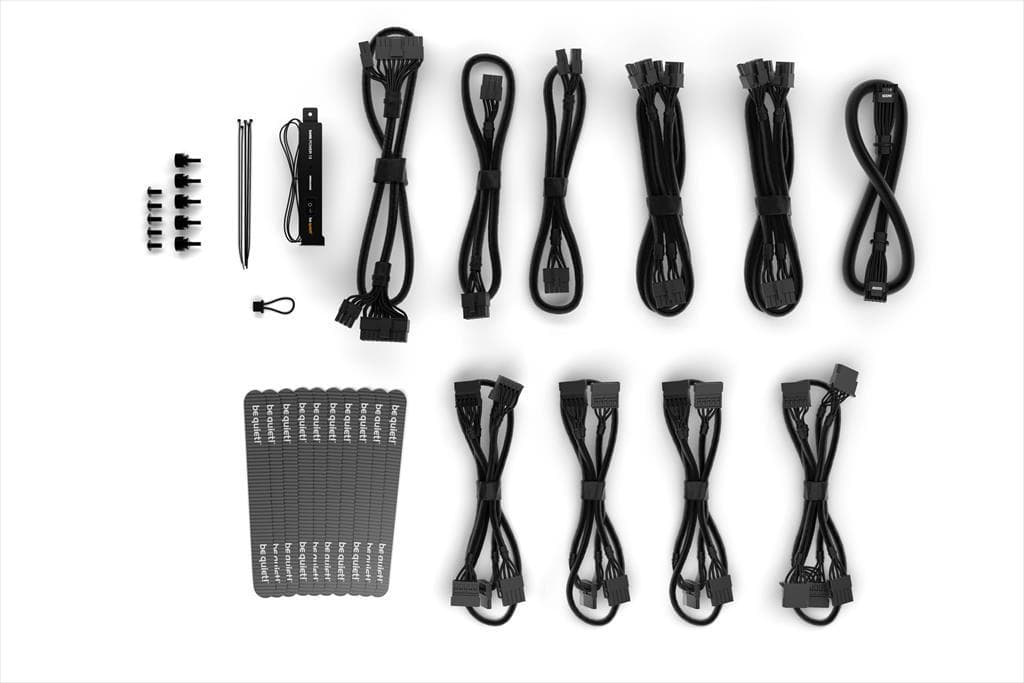

Model name: BE QUIET! DARK POWER 13 BN334 Specification : Cables and connectors: Modular cables: ✓ Sleeved cables: ✓ Maximum cable length (cm): 105 Cable length to motherboard (cm): 60 No. of cables: 12 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P8 (CPU): 1 12V-2x6 cables: 1 PCI-e 6+2-pin (GPU): 4 SATA: 12 PATA: 2 General: Continuous power (W): 850 Peak power (W): 950 Form factor: ATX 3.0 Form factor EPS 12V: Version 2.92 Topology: Active Rectifier + Full bridge + LLC + SR + DC/DC Voltage (Vac): 100 - 240 Frequency (Hz): 50 - 60 Input current (A): 10 / 5 Power factor at 100% load: >0.98 Modern standby: ✓ Power consumption in standby (W): Average life time (h / 25°C): >100,000 Operating temperature up to (°C): 40 Efficiency: 80 PLUS certification: Titanium Efficiency (%) at 230V, 2% load: 73.6 Efficiency (%) at 230V, 10% load: 92.0 Efficiency (%) at 230V, 20% load: 94.7 Efficiency (%) at 230V, 50% load: 95.4 Efficiency (%) at 230V, 100% load: 93.5 Fan and cooling technology: Fan: Silent Wings Fan size (mm): 135 Bearing technology: FDB Motor technology: 6-pole fan motor Max. fan speed (rpm): 1800 dB(A) at 10% load: 7.5 dB(A) at 20% load: 7.5 dB(A) at 50% load: 7.6 dB(A) at 100% load: 19.8 Output: Multi-rail operation (12V rails): 4 12V single rail operation: ✓ Overclocking key: ✓ +3.3V (A): 24 +5V (A): 24 +12V1 (A): 30 +12V2 (A): 30 +12V3 (A): 35 +12V4 (A): 35 -12V (A): 0.5 +5Vsb (A): 3 Max. combined power 12V (W): 840 Max. combined power 12V-2x6 (W): 600 Max. combined power 3.3V + 5V (W): 120 Hold-up time at 100% load (ms): 22.6 Hold-up time at 80% load (ms): 30.3 Power good signal (ms): 100 - 150 Protection: OTP (over temperature protection): ✓ OCP (over current protection): ✓ OPP (over power protection): ✓ SCP (short circuit protection): ✓ OVP (over Voltage protection): ✓ UVP (under Voltage protection): ✓ SIP (Surge & Inrush protection): ✓
