PSU 750W BE QUIET! STRAIGHT POWER 12 w/PCIe 5.0, 80 Plus PLATINUM FULL MODULAR, BN336

Опис

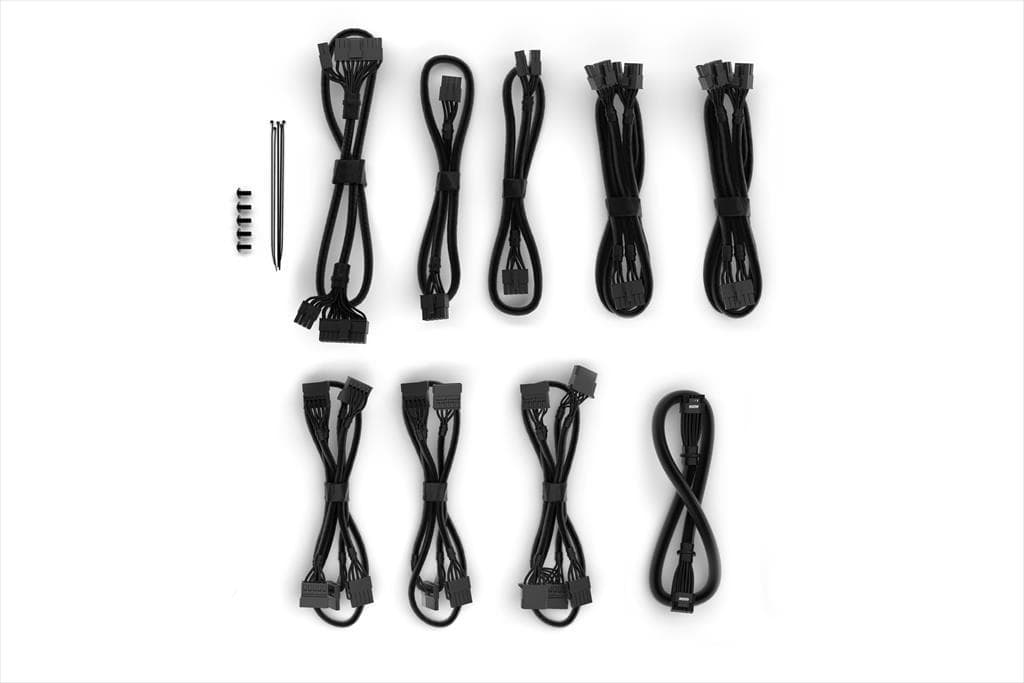

Model name: BE QUIET! STRAIGHT POWER 12 BN336 Specification : Cables and connectors Modular cables: ✓ Sleeved cables: ✓ Maximum cable length (cm): 100 Cable length to motherboard (cm): 60 No. of cables: 9 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P8 (CPU): 1 12V-2x6 cables: 1 PCI-e 6+2-pin (GPU): 4 SATA: 9 PATA: 2 General Continuous power (W): 750 Peak power (W): 820 Form factor: Version 3.1 Form factor EPS 12V: Version 2.92 Topology: Full bridge + LLC + SR + DC/DC Voltage (Vac): 100 - 240 Frequency (Hz): 50 - 60 Input current (A): 10 / 5 Power factor at 100% load: >0.99 Modern standby: ✓ Power consumption in standby (W): 0.15 Average life time (h / 25°C): >100,000 Operating temperature up to (°C): 40 Efficiency 80 PLUS certification: Platinum Efficiency (%) at 230V, 2% load: 65.0 Efficiency (%) at 230V, 10% load: 88.3 Efficiency (%) at 230V, 20% load: 92.6 Efficiency (%) at 230V, 50% load: 93.8 Efficiency (%) at 230V, 100% load: 92.9 Fan and cooling technology Fan: Silent Wings Fan size (mm): 135 Bearing technology: FDB Motor technology: 6-pole fan motor Max. fan speed (rpm): 1800 dB(A) at 10% load: 7.8 dB(A) at 20% load: 7.9 dB(A) at 50% load: 7.9 dB(A) at 100% load: 20.8 Output 12V single rail operation: ✓ Overclocking key: - +3.3V (A): 25 +5V (A): 25 +12V1 (A): 62.5 -12V (A): 0.3 +5Vsb (A): 3 Max. combined power 12V (W): 750 Max. combined power 12V-2x6 (W): 600 Max. combined power 3.3V + 5V (W): 130 Hold-up time at 100% load (ms): 24.8 Hold-up time at 80% load (ms): 31.8 Power good signal (ms): 100 - 150 Protection OTP (over temperature protection) ✓ OCP (over current protection) ✓ OPP (over power protection) ✓ SCP (short circuit protection) ✓ OVP (over Voltage protection) ✓ UVP (under Voltage protection) ✓ SIP (Surge & Inrush protection) ✓
