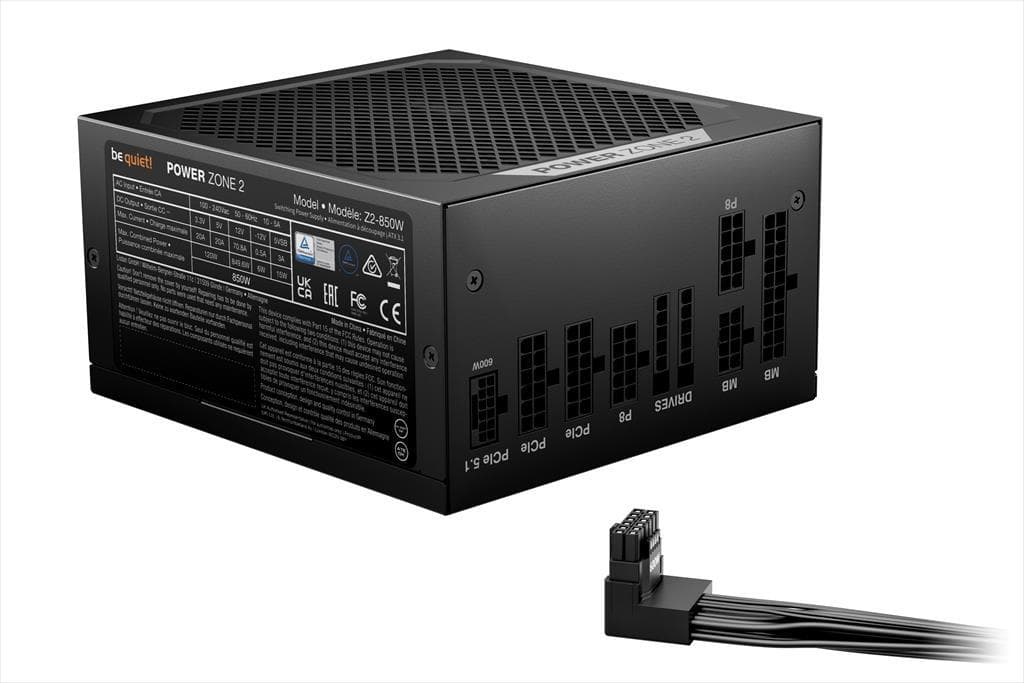

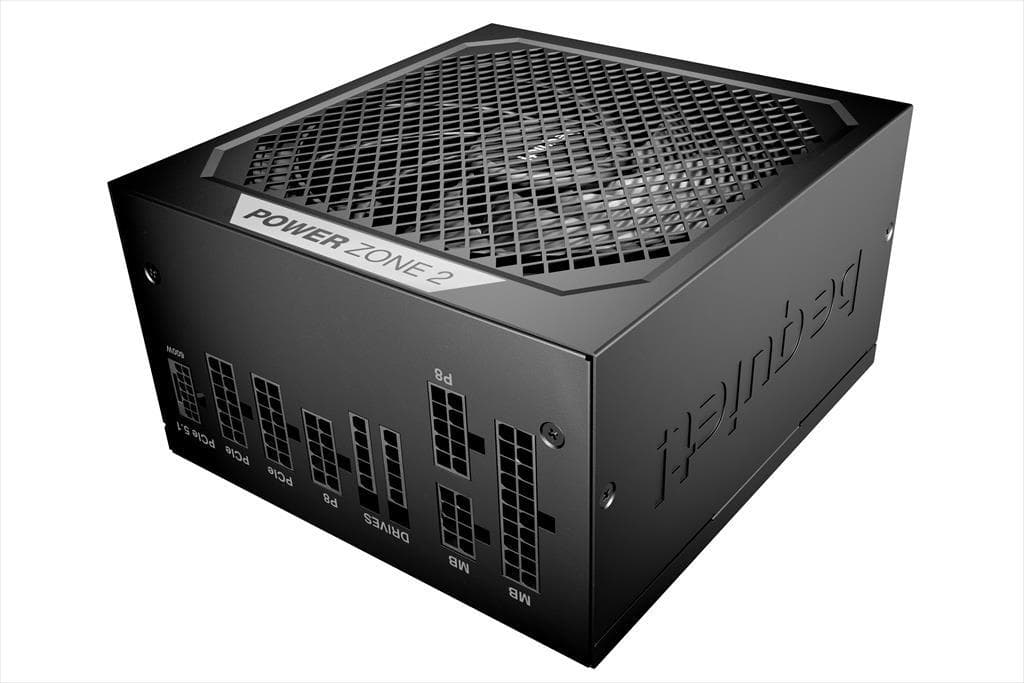

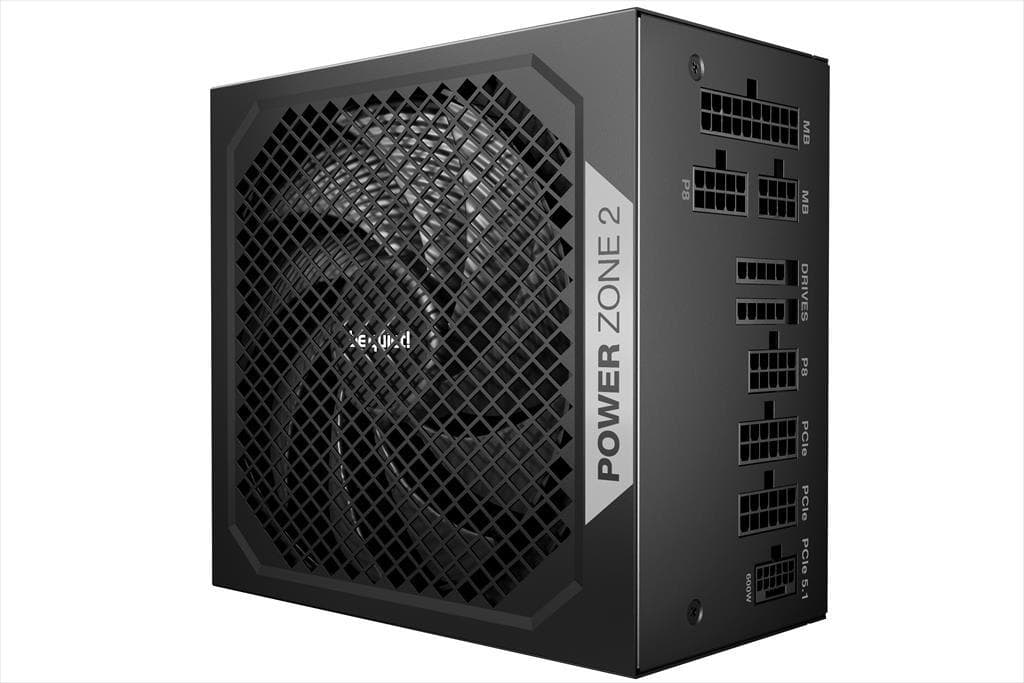

PSU 850W BE QUIET! POWER ZONE 2 80 Plus PLATINUM FULL MODULAR, w/ 90° angled 12V-2x6, BP007EU

Опис

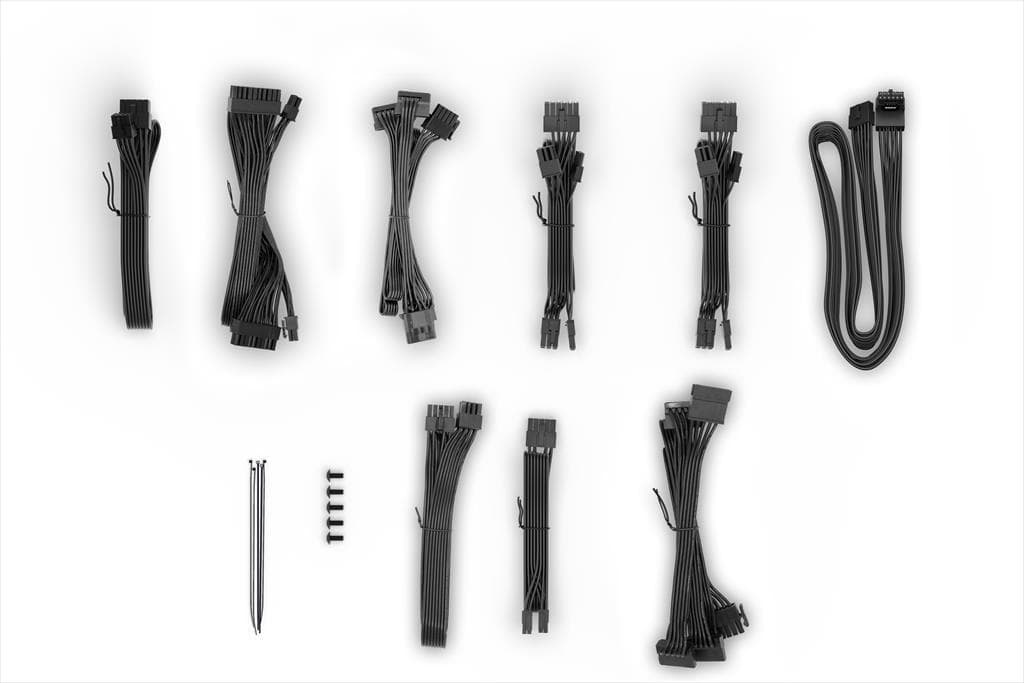

Model name: BE QUIET! POWER ZONE 2 BP007EU Specification : Cables and connectors Modular cables: ✓ Sleeved cables: ✓ Flat cables: ✓ Maximum cable length (cm): 100 Cable length to motherboard (cm): 60 No. of cables: 8 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P8 (CPU): 1 P4 (CPU): 1 12V-2x6 cables: 1 PCI-e 6+2-pin (GPU): 3 SATA: 7 PATA: 1 General Model: Power Zone 2 850W Continuous power (W): 850 Peak power (W): 920 Form factor: ATX 3.1 Form factor EPS 12V: Version 2.92 Topology: LLC + SR + DC/DC Voltage (Vac): 100 - 240 Frequency (Hz): 50 - 60 Input current (A): 10 / 5 Power factor at 100% load: >0.98 Modern standby: ✓ Power consumption in standby (W): <0.18 Average life time (h / 25°C): >100,000 Operating temperature up to (°C): 40 Efficiency 80 PLUS certification: Platinum Efficiency (%) at 230V, 2% load: 68.3 Efficiency (%) at 230V, 10% load: 89.9 Efficiency (%) at 230V, 20% load: 93.0 Efficiency (%) at 230V, 50% load: 94.1 Efficiency (%) at 230V, 100% load: 92.3 Fan and cooling technology Cybenetics Noise Rating: A+ Fan: Pure Wings 3 Fan size (mm): 140 Bearing technology: Rifle Motor technology: 4-pole fan motor Max. fan speed (rpm): 2100 dB(A) at 10% load: 6.5 dB(A) at 20% load: 6.5 dB(A) at 50% load: 6.5 dB(A) at 100% load: 24.9 Output 12V single rail operation: ✓ Overclocking key: - +3.3V (A): 20 +5V (A): 20 +12V1 (A): 70.8 -12V (A): 0.5 +5Vsb (A): 3 Max. combined power 12V (W): 849.6 Max. combined power 12V-2x6 (W): 600 Max. combined power 3.3V + 5V (W): 120 Hold-up time at 100% load (ms): 21.1 Hold-up time at 80% load (ms): 29.0 Power good signal (ms): 100 - 150 Protection OTP (over temperature protection) ✓ OCP (over current protection) ✓ OPP (over power protection) ✓ SCP (short circuit protection) ✓ OVP (over Voltage protection) ✓ UVP (under Voltage protection) ✓ SIP (Surge & Inrush protection) ✓
