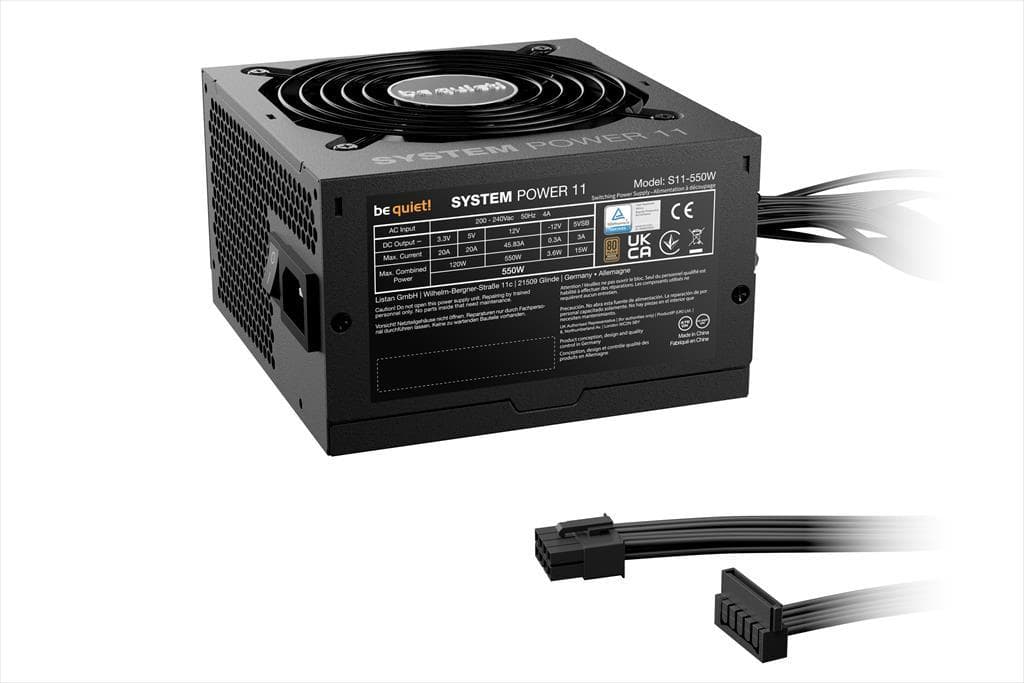

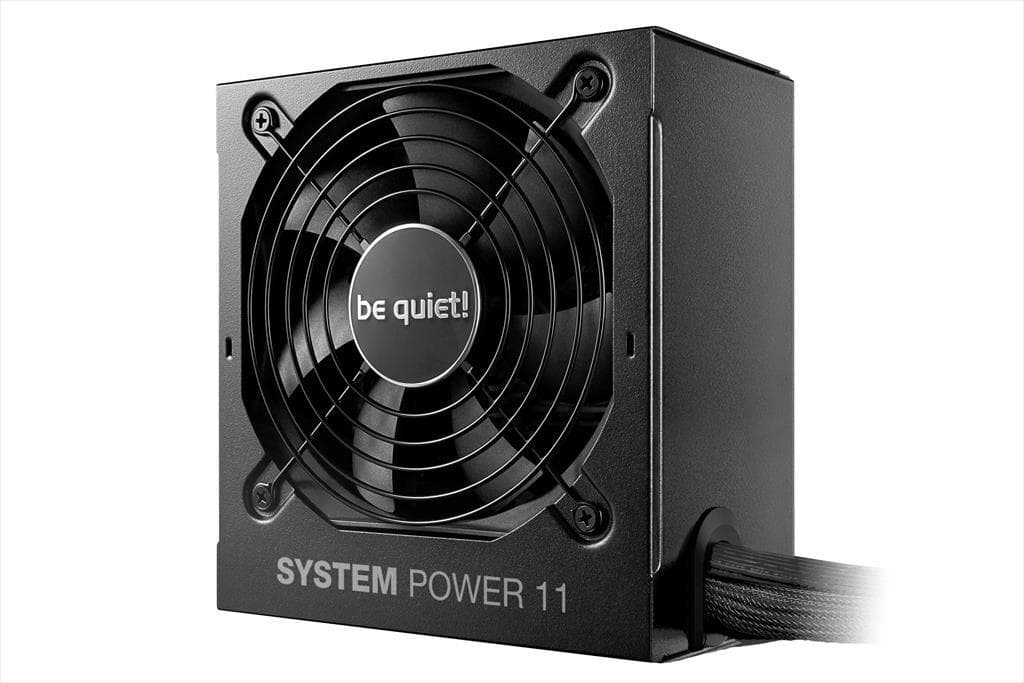

PSU 550W BE QUIET! SYSTEM POWER 11 80 Plus BRONZE, BP010EU

Опис

Model name: BE QUIET! SYSTEM POWER 11 BP010EU Specification : Cables and Connectors Sleeved Cables: P24 Flat Cables: P4+4, P4, PCIe, drives Maximum Cable Length: 55 cm Cable Length to Motherboard: 79 cm No. of Cables: 7 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P4 (CPU): 1 12V-2x6 Cables: 1 PCI-e 6+2-pin (GPU): 2 SATA: 5 PATA: 1 General Continuous Power: 550 W Form Factor: ATX 3.1 Form Factor EPS 12V: Version 2.92 Topology: Double forward + DC-DC Voltage (Vac): 200 - 240 Frequency (Hz): 50 Input Current (A): 4 Power Factor at 100% Load: >0.98 Modern Standby: ✓ Power Consumption in Standby: <0.1 W Average Life Time (25°C): >100,000 h Operating Temperature up to: 40°C Efficiency 80 PLUS Certification: Bronze Efficiency at 230V, 2% Load: 64.4% Efficiency at 230V, 10% Load: 84.4% Efficiency at 230V, 20% Load: 88.6% Efficiency at 230V, 50% Load: 89.7% Efficiency at 230V, 100% Load: 86.6% Fan and Cooling Technology Fan: Silence-optimized be quiet! fan Fan Size: 120 mm Bearing Technology: Rifle Motor Technology: 4-pole fan motor Max. Fan Speed: 1800 rpm Noise at 10% Load: 10.4 dB(A) Noise at 20% Load: 10.8 dB(A) Noise at 50% Load: 11.0 dB(A) Noise at 100% Load: 24.2 dB(A) Output 12V Single Rail Operation: ✓ +3.3V (A): 20 +5V (A): 20 +12V1 (A): 45.83 -12V (A): 0.3 +5Vsb (A): 3 Max. Combined Power 12V: 550 W Max. Combined Power 12V-2x6: 300 W Max. Combined Power 3.3V + 5V: 120 W Hold-up Time at 100% Load: 16.86 ms Hold-up Time at 80% Load: 20.92 ms Power Good Signal: 100 - 150 ms Protection OTP (Over Temperature Protection): ✓ OCP (Over Current Protection): ✓ OPP (Over Power Protection): ✓ SCP (Short Circuit Protection): ✓ OVP (Over Voltage Protection): ✓ UVP (Under Voltage Protection): ✓ SIP (Surge & Inrush Protection): ✓
