PSU 750W BE QUIET! PURE POWER 13 M w/PCIe 5.1, 80 Plus GOLD FULL MODULAR, BP026EU

Опис

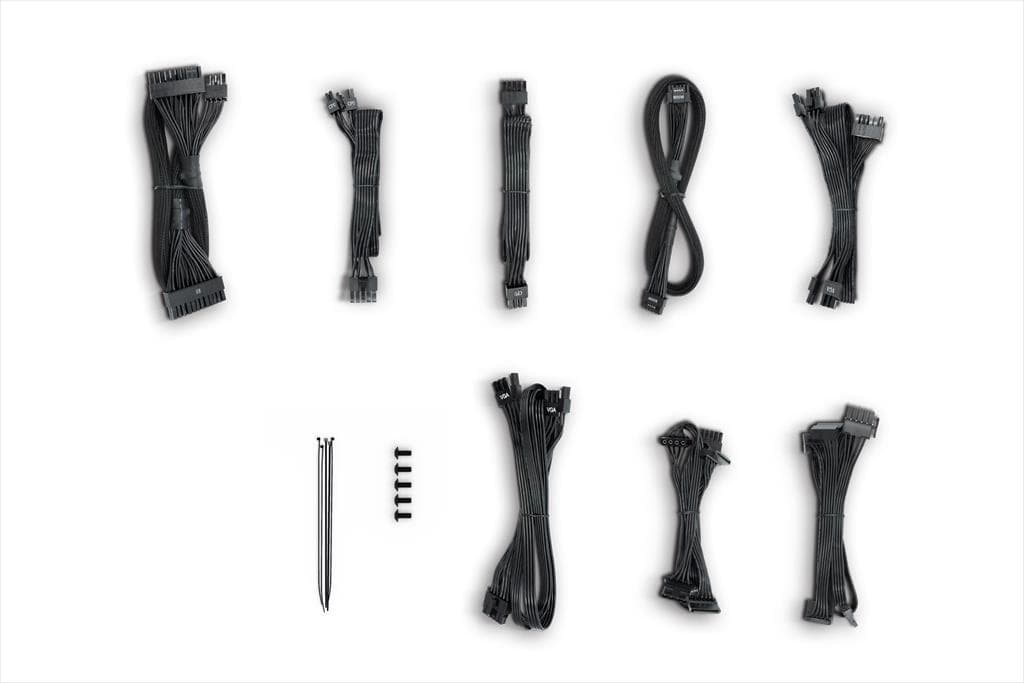

Model name: BE QUIET! PURE POWER 13 M BP026EU Specification : Cables and connectors Modular cables: ✓ Sleeved cables: ✓ Flat cables: ✓ Maximum cable length (cm): 95 Cable length to motherboard (cm): 55 No. of cables: 8 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P8 (CPU): 1 12V-2x6 cables: 1 PCI-e 6+2-pin (GPU): 4 SATA: 6 PATA: 2 General Model: Pure Power 13 M | 750W Continuous power (W): 750 Peak power (W): 820 Form factor: ATX 3.1 Form factor EPS 12V: Version 2.92 Topology: LLC + SR + DC/DC Voltage (Vac): 100 - 240 Frequency (Hz): 50 - 60 Input current (A): 10 / 5 Power factor at 100% load: >0.98 Modern standby: ✓ Power consumption in standby (W): <0.1 Average life time (h / 25°C): >100,000 Operating temperature up to (°C): 40 Efficiency 80 PLUS certification: Gold Efficiency (%) at 230V, 2% load: 71.9 Efficiency (%) at 230V, 10% load: 90.6 Efficiency (%) at 230V, 20% load: 93.4 Efficiency (%) at 230V, 50% load: 94.3 Efficiency (%) at 230V, 100% load: 92.6 Fan and cooling technology Fan: Silence-optimized be quiet! fan Fan size (mm): 120 Bearing technology: Rifle Motor technology: 4-pole fan motor Max. fan speed (rpm): 1800 dB(A) at 10% load: 7.2 dB(A) at 20% load: 7.2 dB(A) at 50% load: 8.5 dB(A) at 100% load: 16.5 Output 12V single rail operation: ✓ Overclocking key: - +3.3V (A): 20 +5V (A): 20 +12V1 (A): 62.5 -12V (A): 0.3 +5Vsb (A): 3 Max. combined power 12V (W): 750 Max. combined power 12V-2x6 (W): 600 Max. combined power 3.3V + 5V (W): 120 Hold-up time at 100% load (ms): 20.9 Hold-up time at 80% load (ms): 28.62 Power good signal (ms): 100 - 150 Protection OTP (over temperature protection): ✓ OCP (over current protection): ✓ OPP (over power protection): ✓ SCP (short circuit protection): ✓ OVP (over Voltage protection): ✓ UVP (under Voltage protection): ✓ SIP (Surge & Inrush protection): ✓
