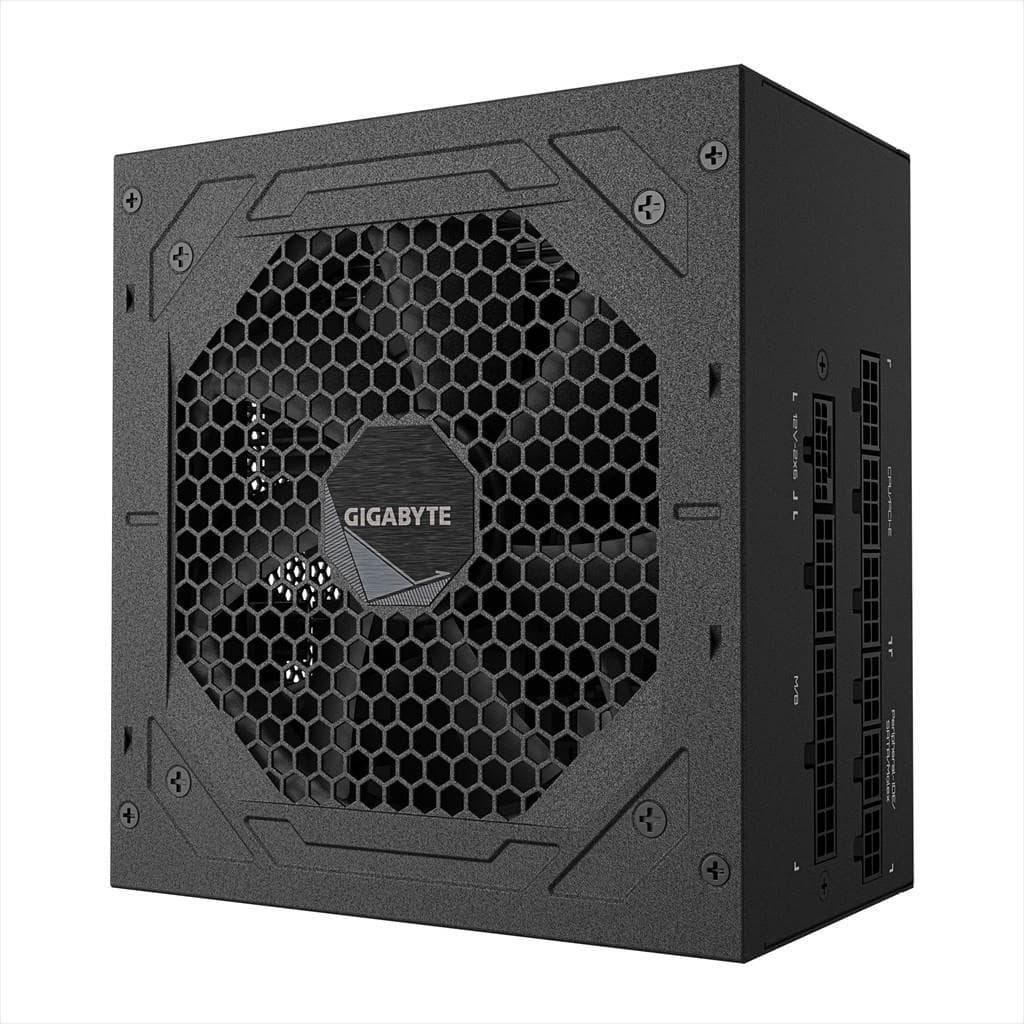

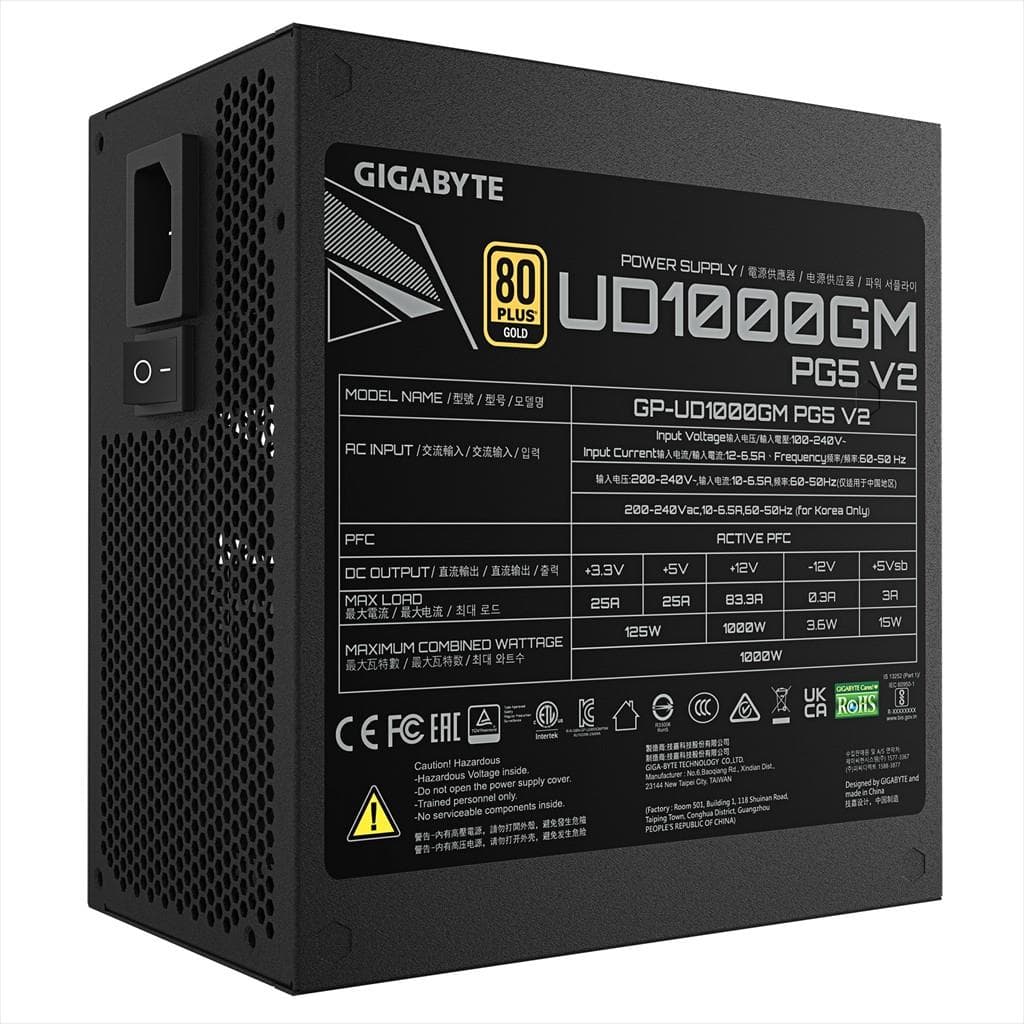

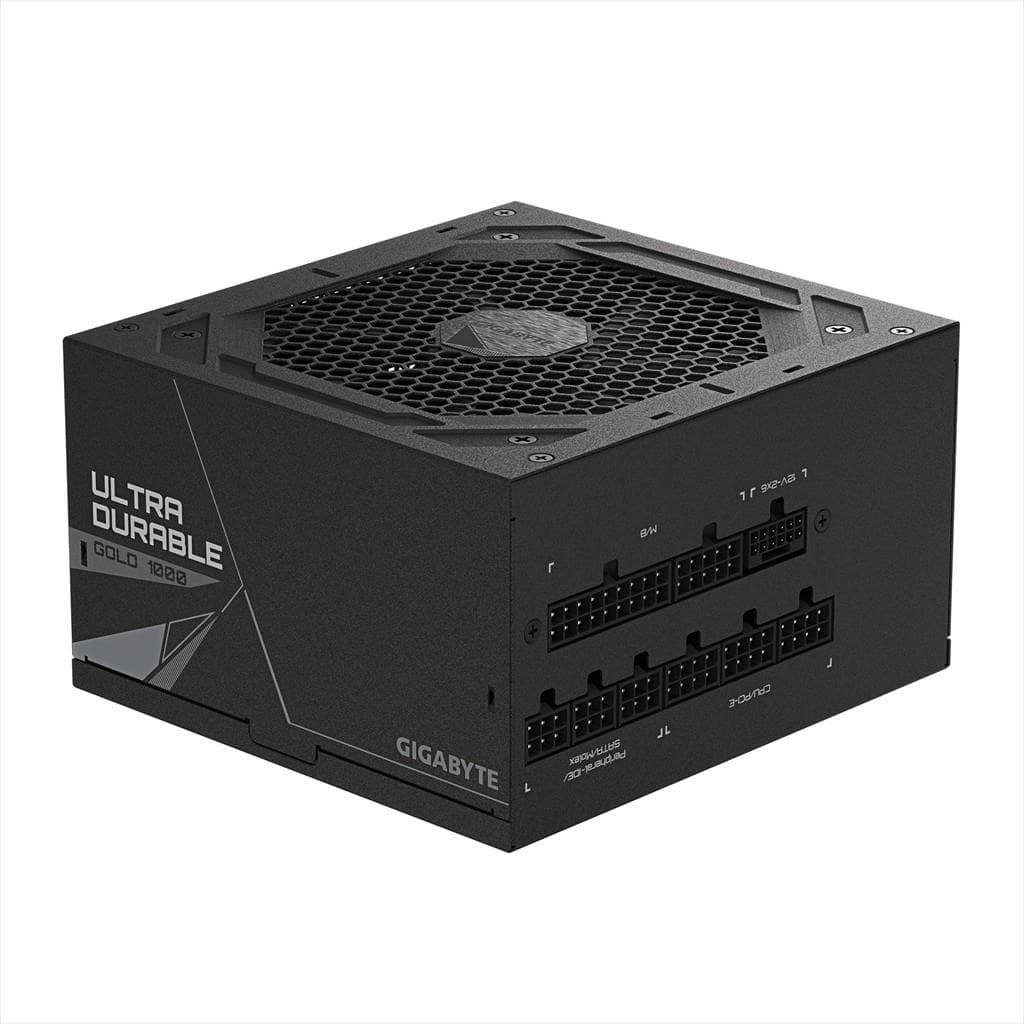

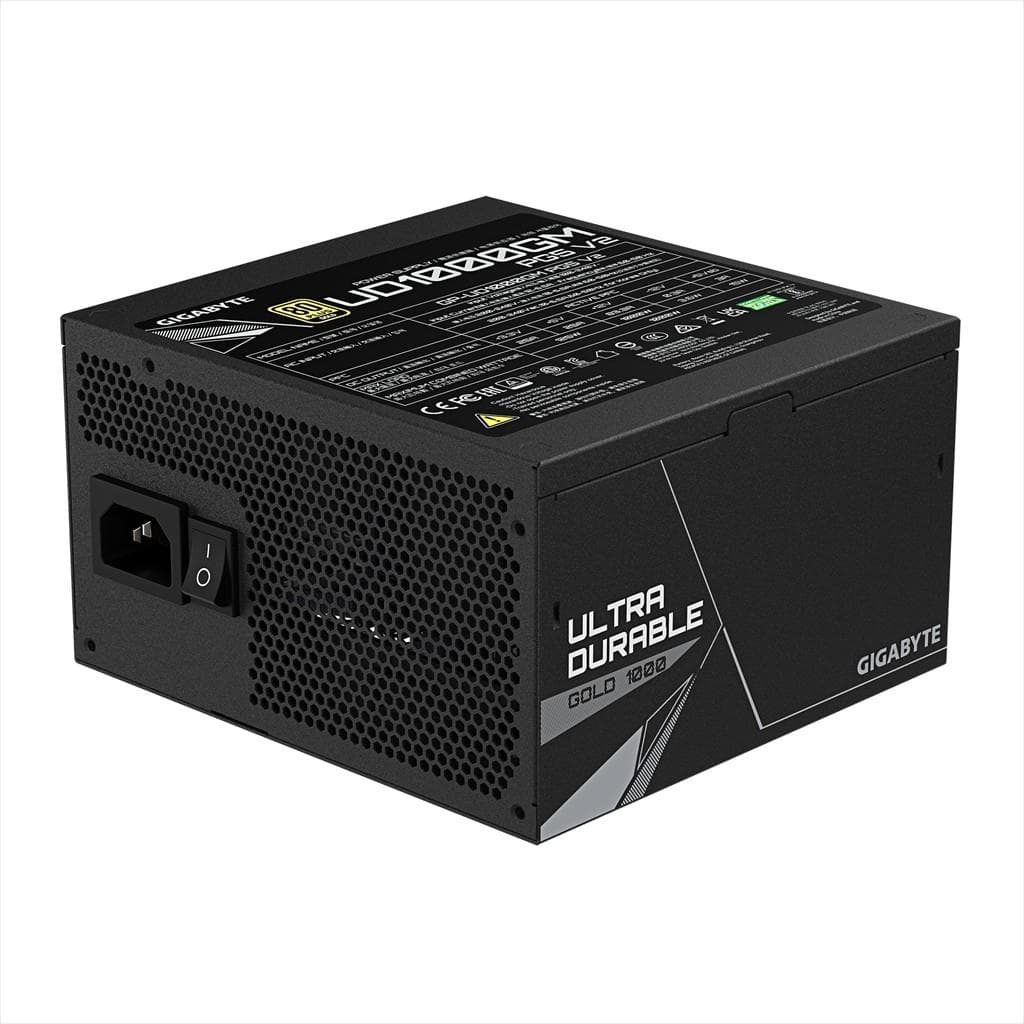

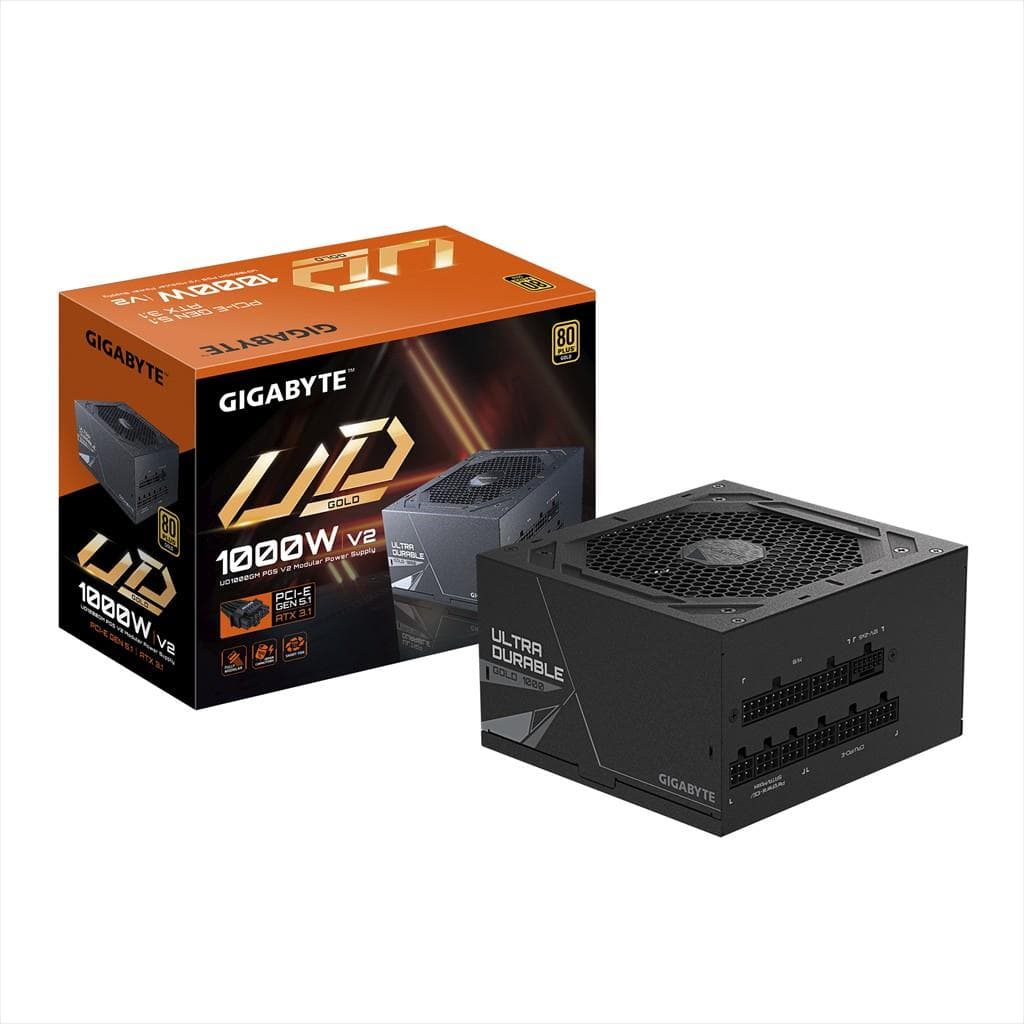

PSU 1000W GIGABYTE UD1000GM PG5 V2 w/PCIe 5.1, 80 Plus GOLD FULL MODULAR, GP-UD1000GM PG5 V2

Опис

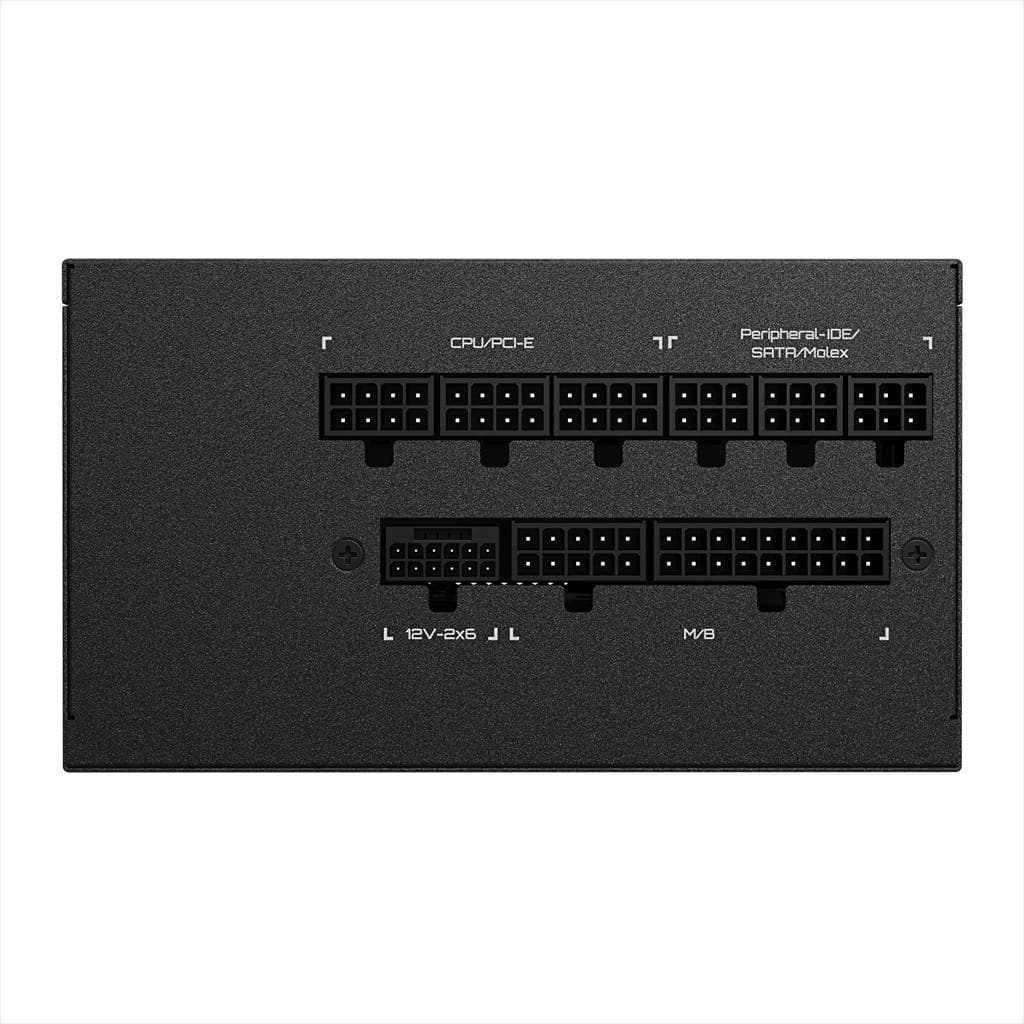

Model Name: UD1000GM PG5 V2 1000 W fully modular ATX 3.1 power supply · 80 PLUS Gold PCIe Gen 5.1 ready · 100% Japanese capacitors · Cybenetics Platinum efficiency Features Ultra Durable design with 100% Japanese capacitors Intel ATX 3.1 and PCIe Gen 5.1 ready for latest platforms and GPUs 80 PLUS Gold certified with Cybenetics Platinum-level efficiency Fully modular cable design with embossed all-white cables for clean builds Powerful single +12 V rail for stable high-load performance Optimized thermal solution with 120 mm smart hydraulic bearing (HYB) fan Active PFC and up to 90% efficiency at typical load Comprehensive protections including OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP Compact 140 mm depth ATX housing for wider case compatibility Specification Type / form factor: Intel ATX 12V v3.1 Output capacity: 1000 W Input voltage: 100–240 Vac (full range) Input current: 15–6.5 A Input frequency: 50–60 Hz PFC: Active PFC (>0.9 typical) 80 PLUS certification: Gold Efficiency: Up to 90% at typical load Cybenetics rating: Platinum efficiency Rail design: Single +12 V rail Fan type: 120 mm hydraulic bearing (HYB) fan Dimensions (W × D × H): 150 × 140 × 86 mm MTBF: >100,000 hours Protections: OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP Power good signal: 100–150 ms Hold-up time: >16 ms Cable type: Embossed, all white (fully modular) Connectors: • 1 × ATX/MB 20+4-pin: 610 mm • 2 × CPU/EPS 4+4-pin: 650 mm + 200 mm (daisy-chain on one cable) • 4 × PCIe 6+2-pin: 600 mm + 150 mm (on 2 cables) • 1 × PCIe 12+4-pin (12VHPWR): 700 mm • 8 × SATA: 600 mm + 150 mm + 150 mm + 150 mm (×2 cables) • 3 × 4-pin peripheral + 1 × 4-pin floppy: 500 mm + 150 mm + 150 mm + 150 mm
