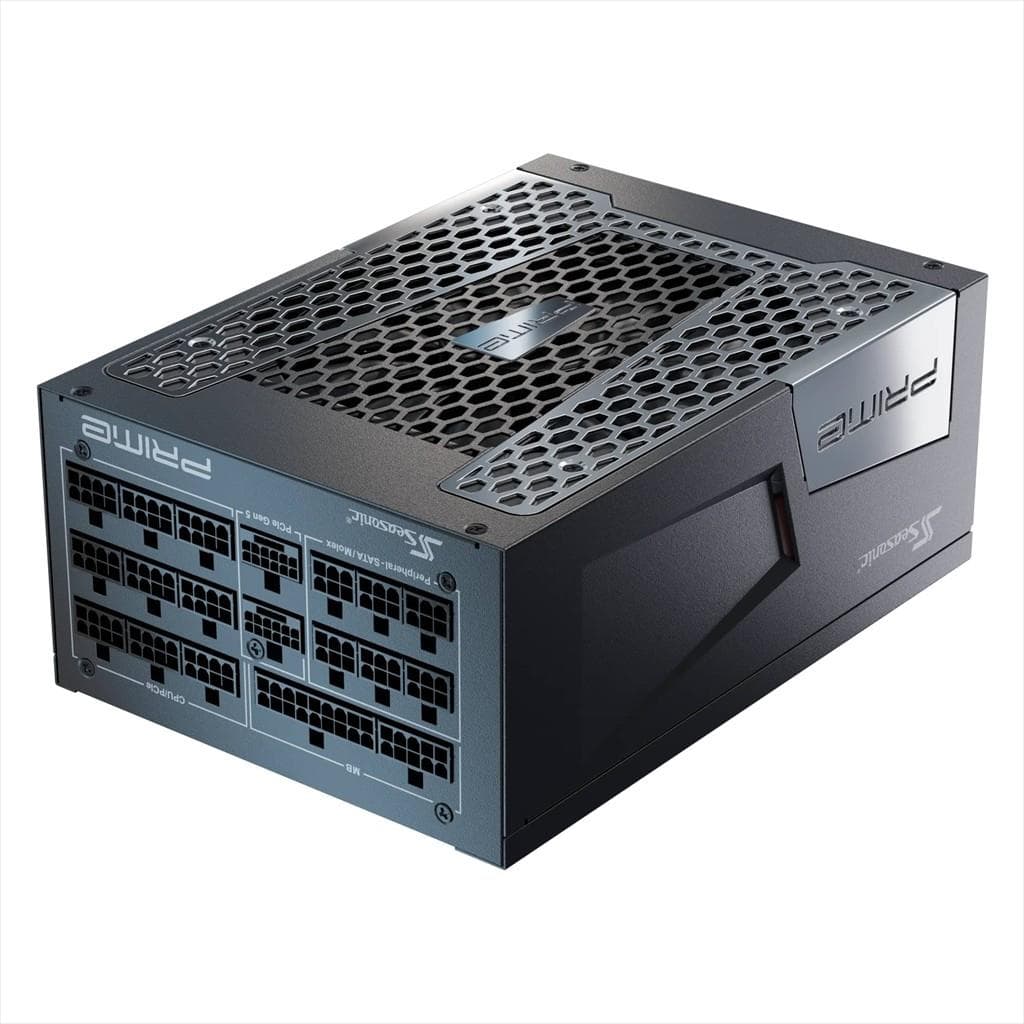

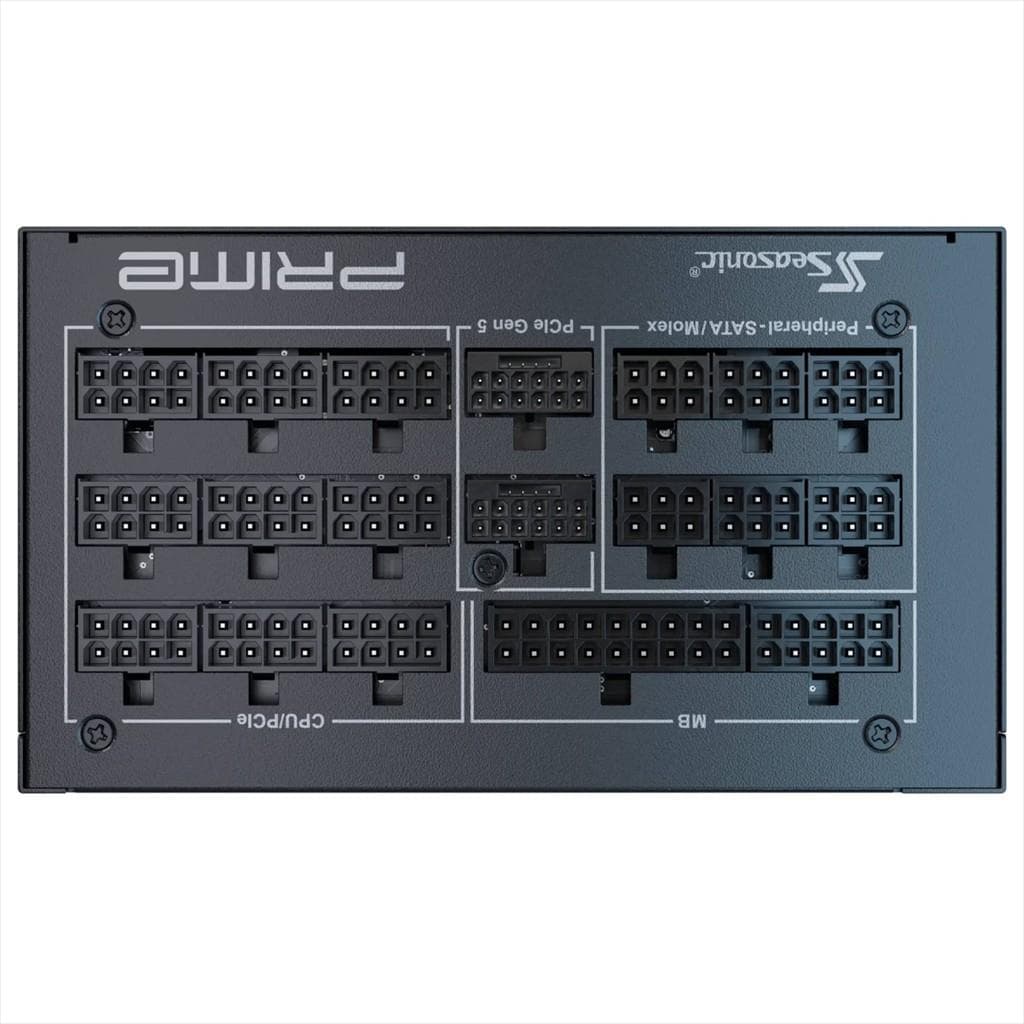

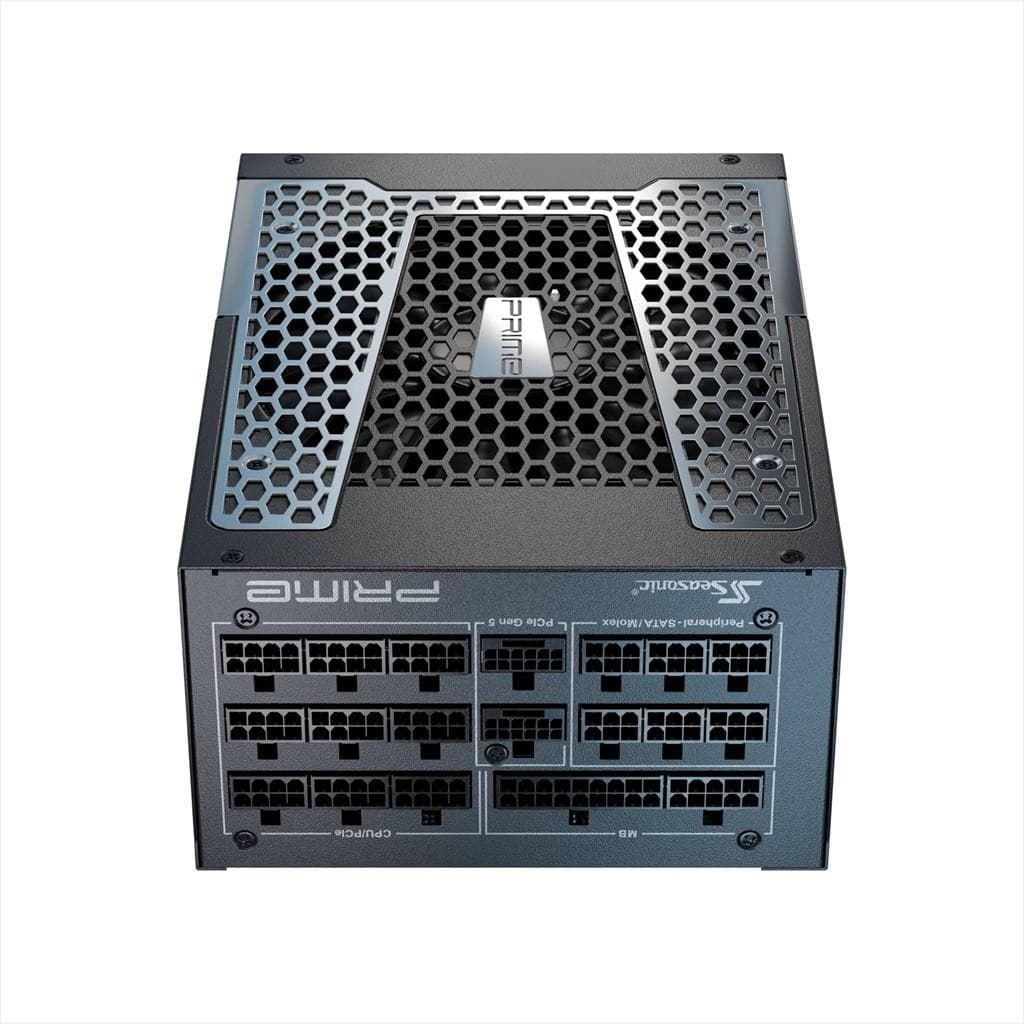

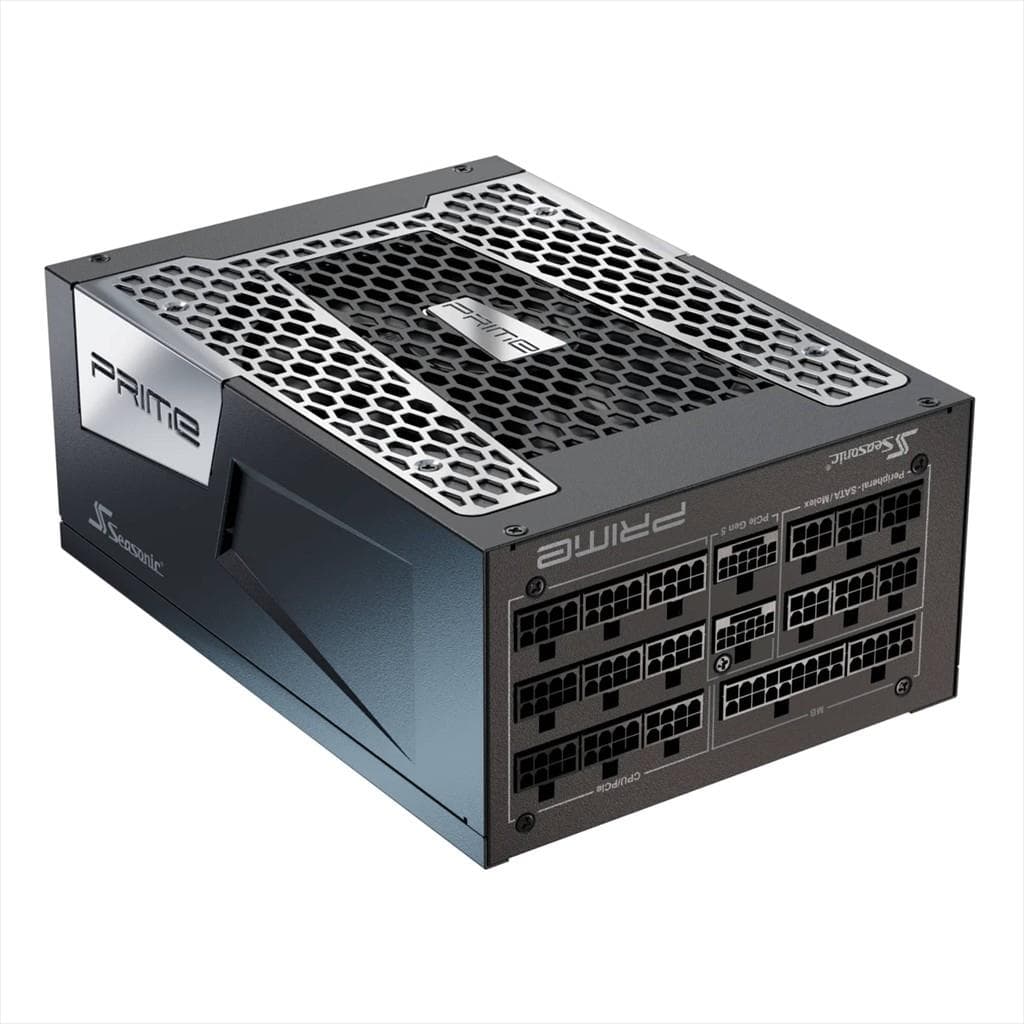

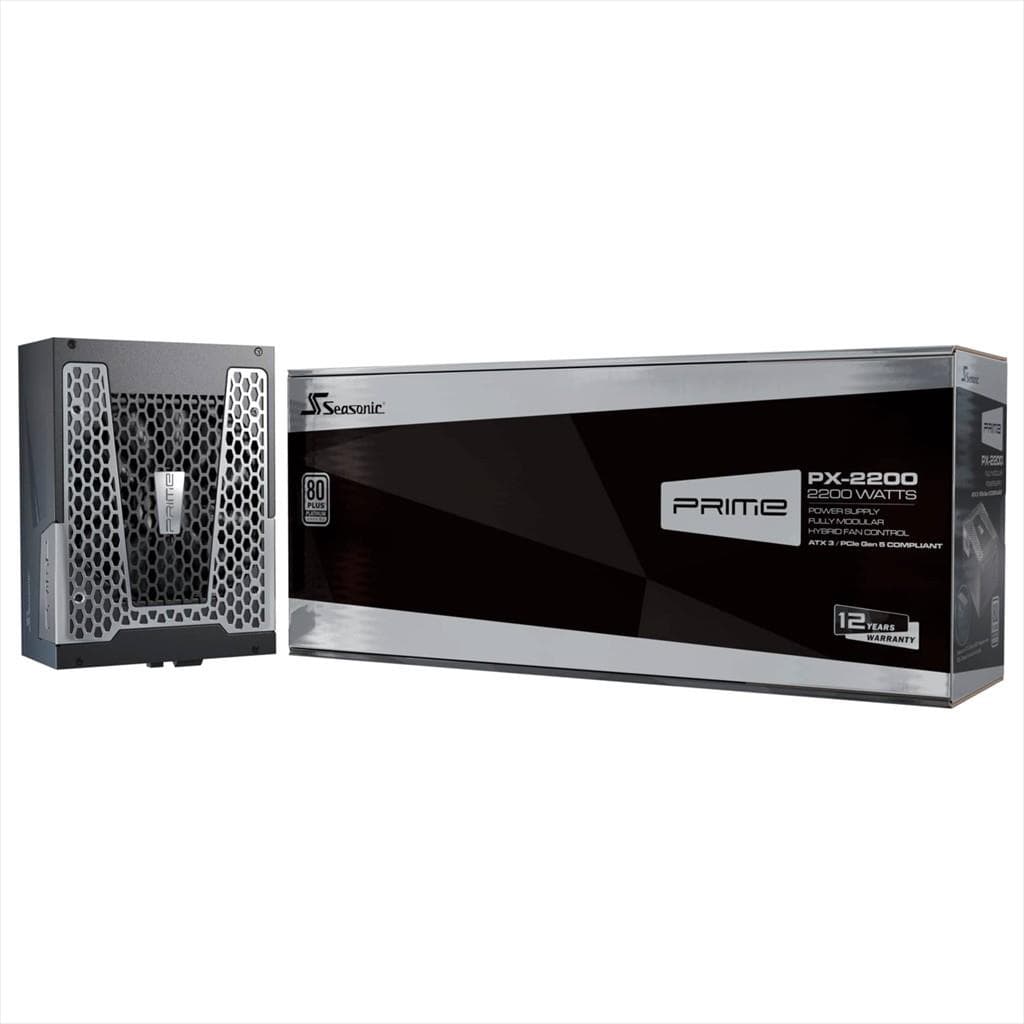

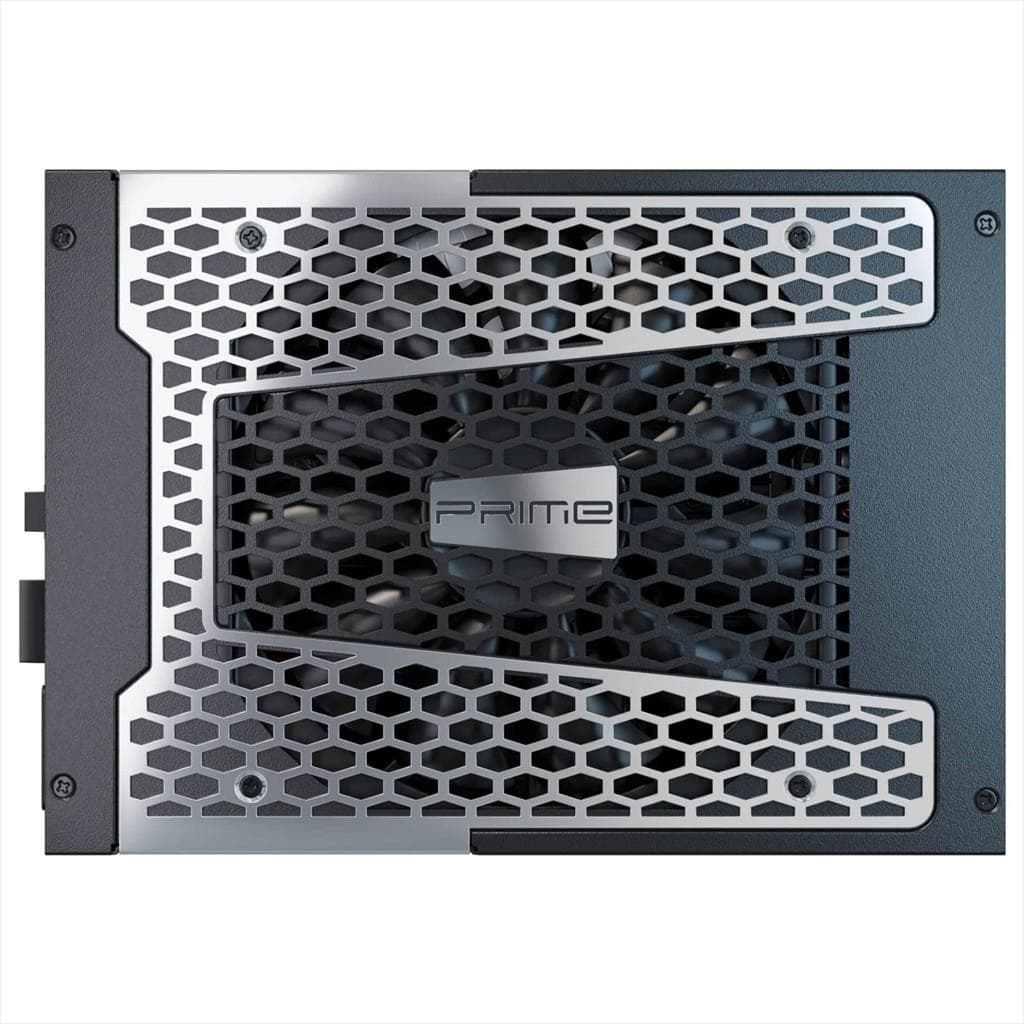

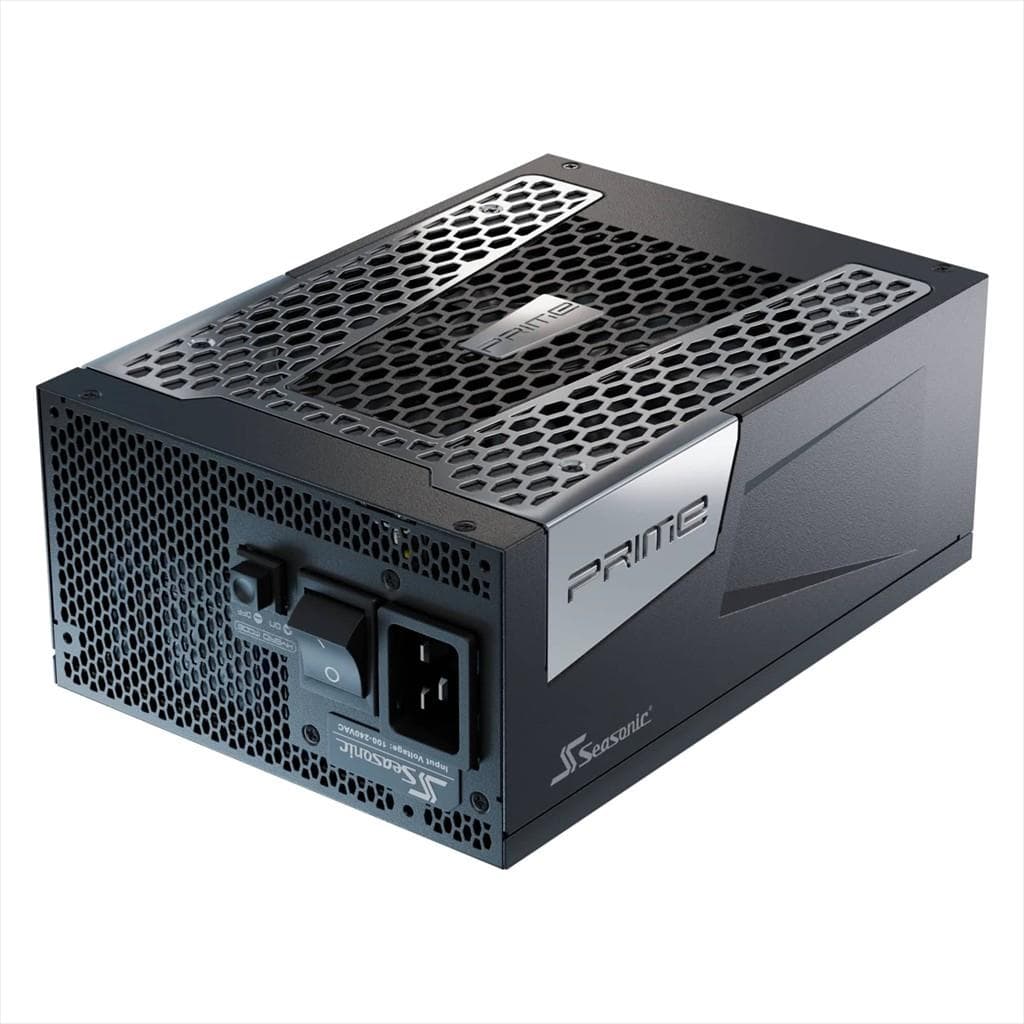

PSU 2200W SEASONIC PRIME PX-2200 ATX 3.1, 80 Plus PLATINUM FULL MODULAR, SRP-PPX222-A5A22ST

Опис

Model Name: Seasonic PRIME PX 2200W ATX 3.1 PCIe 5.1 80 Plus Platinum Modular 2200 W fully modular ATX 3.1 power supply · 80 PLUS Platinum efficiency PCIe 5.1 with 4 × 12VHPWR · Digital hybrid fan control Features Massive 2200 W power capacity to support ultra high‑end and multi‑GPU systems ATX 3.1 compliant and PCIe 5.1 ready for next‑generation GPUs and platforms 80 PLUS Platinum efficiency for reduced power loss, heat, and operating cost Fully modular design with individually braided black cables for clean, easy builds Digital Hybrid Fan Control with semi‑passive operation for optimized cooling and low noise 135 mm fluid dynamic bearing fan rated for 50,000 hours at 40°C for long‑term reliability Comprehensive protections (OPP, OVP, UVP, OCP, OTP, SCP) safeguard your components Fixed 230 V AC input and 0–50 °C operating temperature range for stable operation Specification Power capacity: 2200 W Form factor: ATX / EPS ATX standard: ATX 3.1 Efficiency: 80 PLUS Platinum Cybenetics efficiency level: TBA Cybenetics noise level: TBA Fan size: 135 mm Fan control: Digital Hybrid Fan Control (semi‑passive) Fan bearing: Fluid Dynamic Bearing (FDB) Fan life expectancy: 50,000 hours at 40°C, 15–65% RH Modularity: Fully modular Cable type: Individual black cables with braided pattern AC input: Fixed 230 V Operating temperature: 0–50 °C MTBF (excl. fan, 25 °C): 100,000 hours Protections: OPP, OVP, UVP, OCP, OTP, SCP Safety / EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH CPU power connectors (12V ATX/EPS): 1 12VHPWR PCIe power connectors: 4 8‑pin PCIe power connectors: 4 6+2‑pin PCIe power connectors: 4 SATA power connectors: 6 Max CPU power cable length: 700 mm Max 24‑pin motherboard cable length: 610 mm Semi‑passive power supply: Yes
