CASE BE QUIET! ATX Mid-Tower Light Base 500, w/2x Tempered glass, 3x Pure Wings 3 Reverse 120mm, 1x Pure Wings 3 120mm, Black, BGW83

Опис

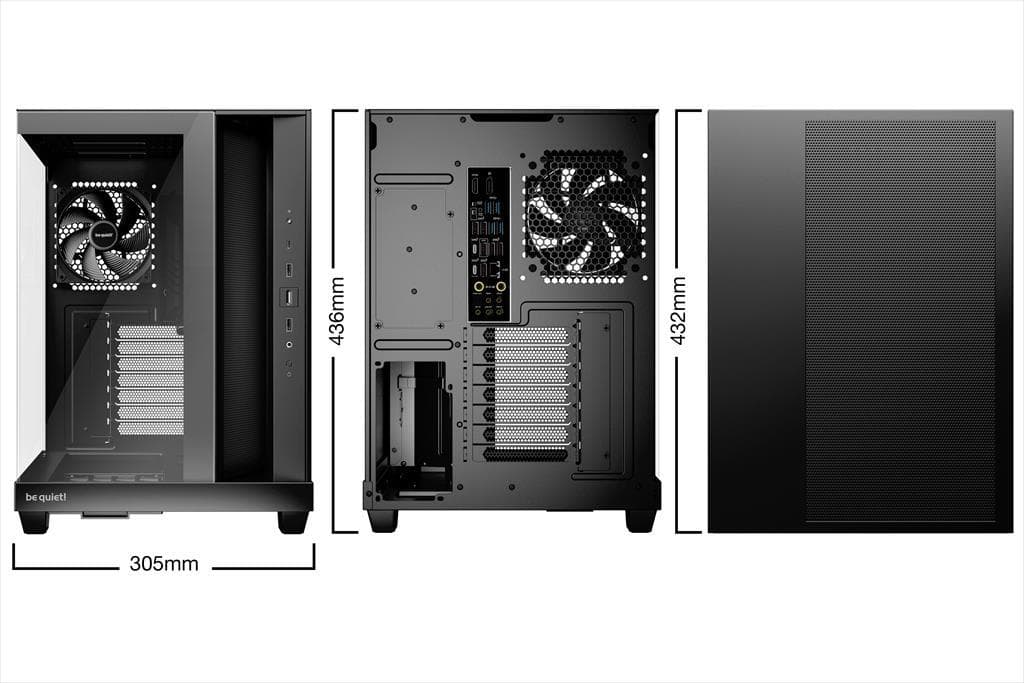

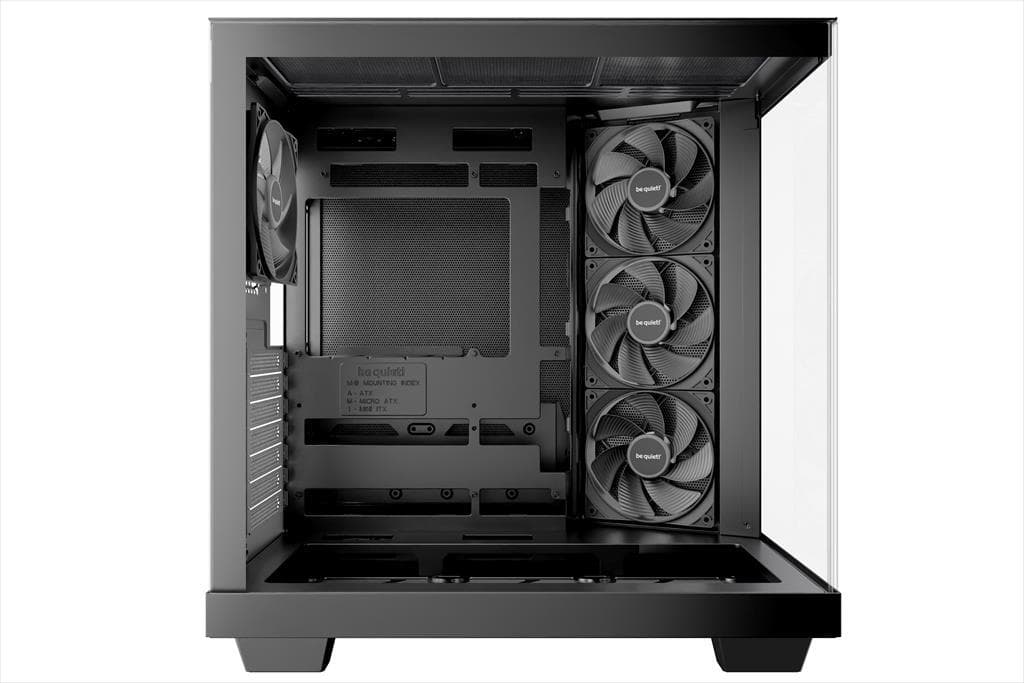

Model name: BE QUIET! Light Base 500 Specification : General Color option: Black Motherboard compatibility: ATX / M-ATX / Mini-ITX support BTF MB Case size excl. stands (L x W x H), (mm): 432 x 305 x 410 Case size incl. stands (L x W x H), (mm): 432 x 305 x 436 Volume (l): 49.6L PSU form factor: ATX PS/2 Net weight (kg): 10.91 Expansion slots: 7 Pre-installed fans Fan at side: 3x Pure Wings 3 Reverse 120mm PWM Black Fan at rear: 1x Pure Wings 3 120mm PWM Black Dimensions (L x W x H), (mm): 120 x 25 x 120 Fan speed at 100% PWM / 12V (rpm): 1600 | 1500 Airflow at 100% PWM / 12V (CFM / m3/h): 51.5 / 87.5 Air Pressure at 100% PWM / 12V (mm H2O): 1.34 Noise level at 100% PWM / 12V (dB(A)): 25.5 Voltage range (V DC): 5 - 13.2 Input power (W): 3.8 Input current (A): 0.32 Connector: 4-pin PWM Lifespan (h / 25°C): 60,000 Fan controller: 2x 12 Ports Maximum fan installation Maximum fans: 10 Top (mm): 2x 140 / 3x 120 Side (mm): 3x 120 Rear (mm): 1x 120 / 1x 140 Bottom (mm): 3x 120 Optional radiator installation Top (mm): 120 / 240 / 280 / 360 Side (mm): 120 / 240 Rear (mm): 120 PSU compatibility Maximum dimensions excl. bottom fan (mm): <200 Maximum dimensions incl. bottom fan (mm): <200 Graphics card HDD cage (in height of graphics card) installed (mm): 400 HDD cage (in height of graphics card) removed (mm): 400 Maximum PCIe slots with vertical graphics card (pcs.): 4 Drive bay capacity 3.5 slots (scope of delivery): 2 3.5 slots (max.): 2 2.5 slots (scope of delivery): 2 2.5 slots (max.): 2 Cooling Max. construction height of CPU cooler unit (mm): 185 I/O Panel USB 3.2 Gen. 2 Type C: 1 USB 3.2 Type A: 2 HD Audio I/O: Mic + Audio Removeable dust filters Side: 1 Bottom: 1
