UPS 2200VA / 1200W POWERWALKER VI 2200 SHL, 2xSHUKO, 2x IEC C13, USB, RJ11, 10120098

Опис

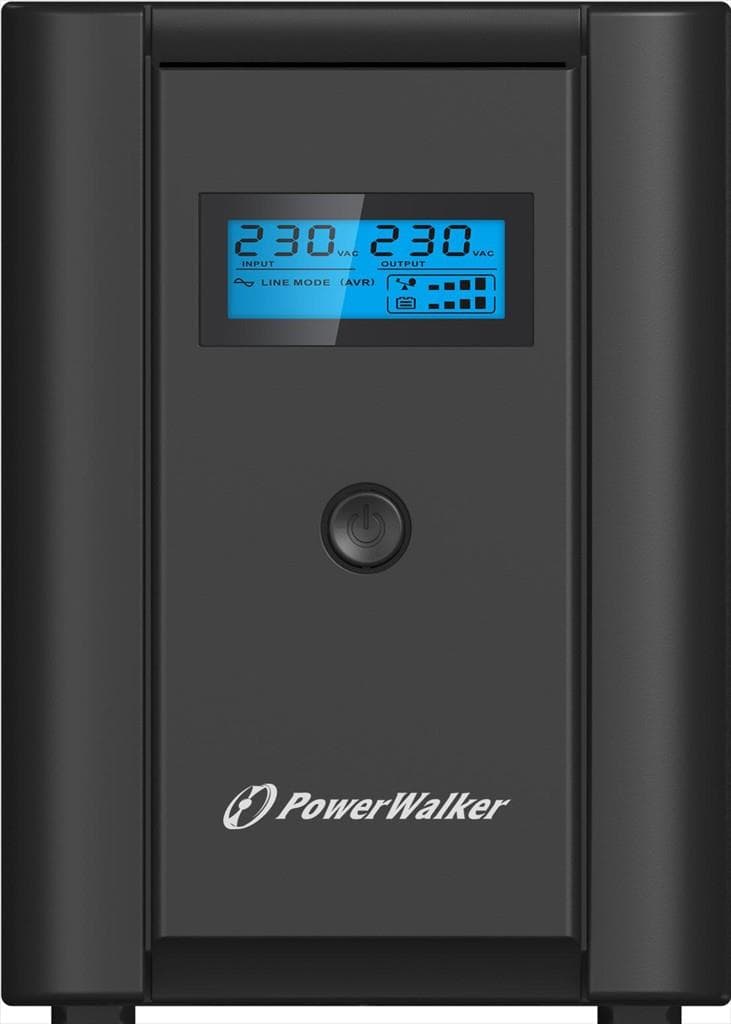

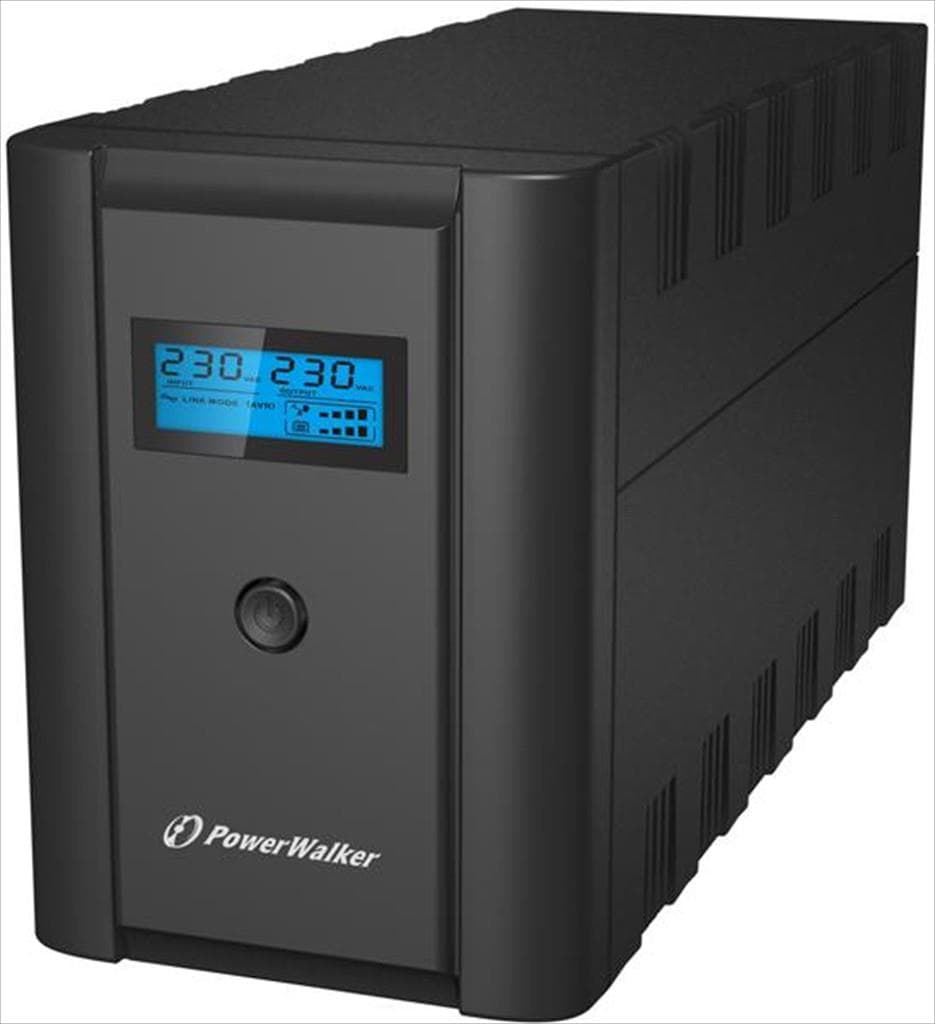

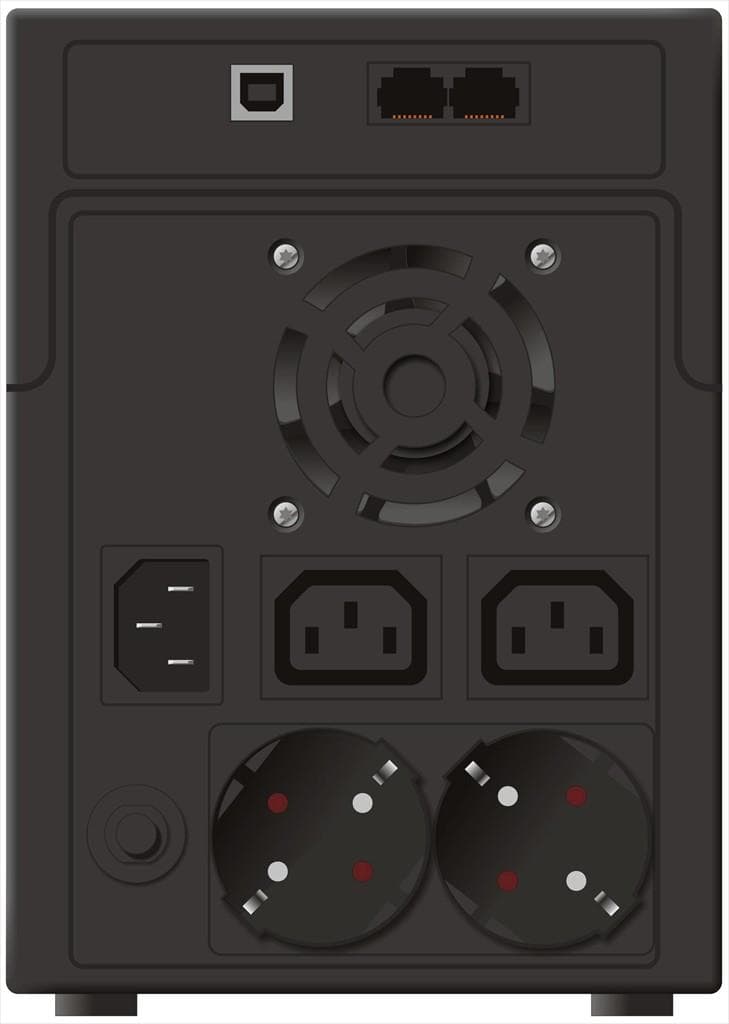

Model Name: PowerWalker VI 2200 SHL LCD 2200 VA / 1200 W line-interactive UPS · Tower form factor LCD touch panel · USB HID support · Multiple Type F & IEC outlets Features Line-interactive (VI) UPS with 2200 VA / 1200 W power capacity Human Interface Device (HID) supported for native OS integration LCD touch panel for easy parameter monitoring and navigation Data line surge protection via RJ-11 and RJ-45 ports (100 Mbit) Several output sockets: Type F, Type E, IEC with C14 input connector Automatic Voltage Regulator (AVR) for stable output voltage Advanced fan logic for reduced noise in LINE mode at low load Includes WinPower monitoring software via USB Type B connection Specification UPS type: Line-Interactive (VI) Phases (IN-OUT): 1-1 Form factor: Tower Power capacity: 2200 VA / 1200 W Output power factor: 0.55 Input voltage range: 170–280 VAC ±7% Input frequency range: 50 Hz or 60 Hz (self-adaptive) Waveform: Simulated sine wave Nominal output voltage: 230 VAC Output frequency (battery mode): ±1 Hz Input connector: C14 Output sockets: 2 × Type F (CEE 7/3), 2 × IEC C13 LINE mode efficiency (full load): 95.0% Battery mode efficiency (full load): 60.0% Transfer time (AC/Line to battery): 4–8 ms Data line protection: RJ-11 port, RJ-45 port (100 Mbit) Additional features: LCD display, circuit breaker reset, HID support, AVR IEC 62040-3 classification: VI-SY-333 Batteries: 2 × 12.0 V / 9.0 Ah DC voltage: 2 × 12.0 V Charger current: 1.2 A Recharge time: 4 h to 90% Full load backup time: 0.5 min Half load backup time: 5.0 min Communication: USB Type B – for
