NET ACCESS POINT CUDY AP1200, 10/100 Ethernet PoE

Опис

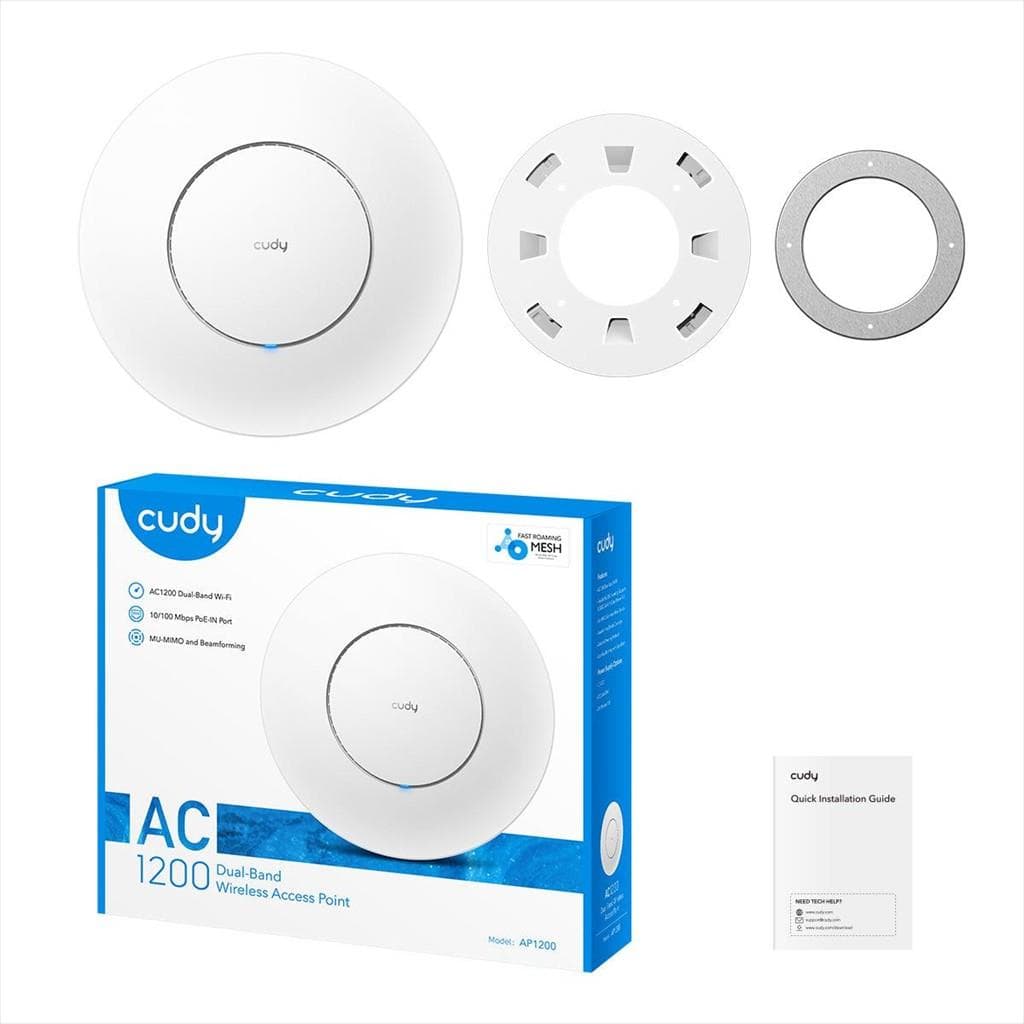

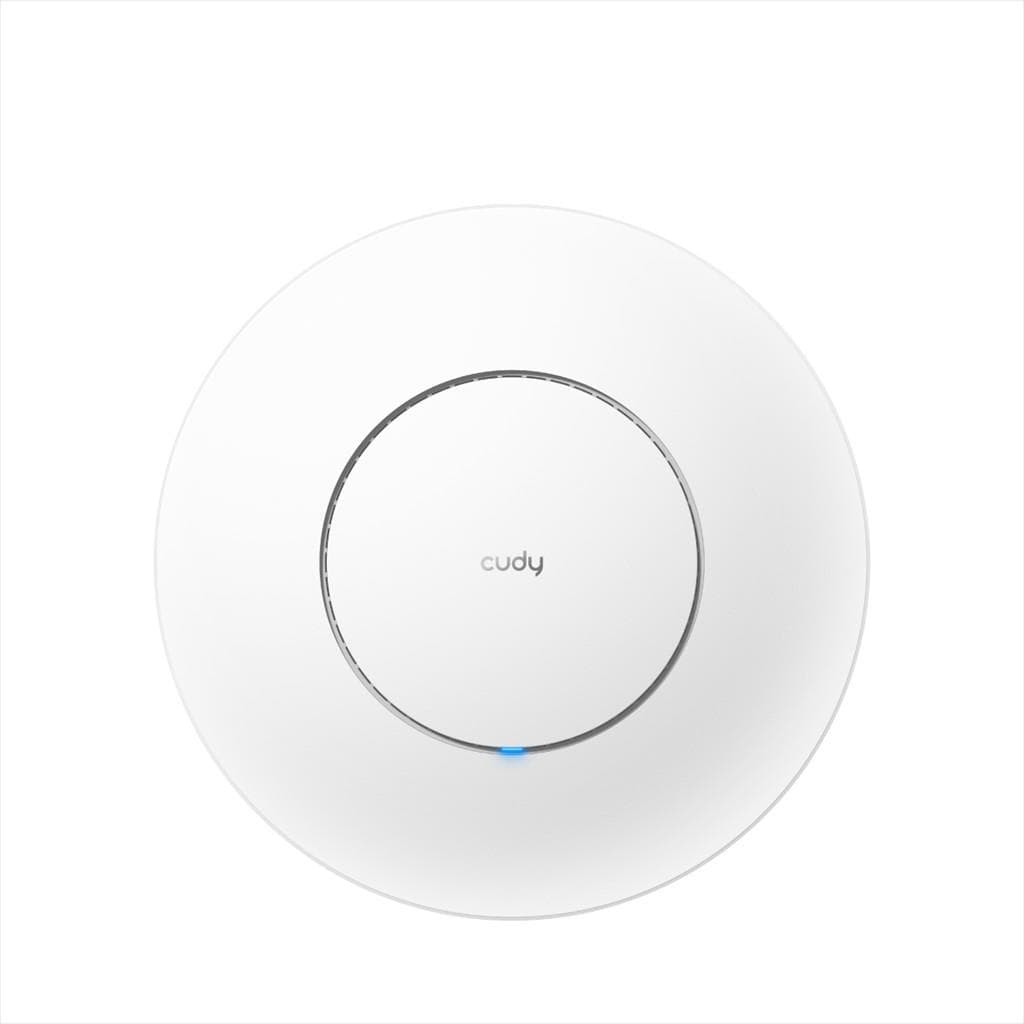

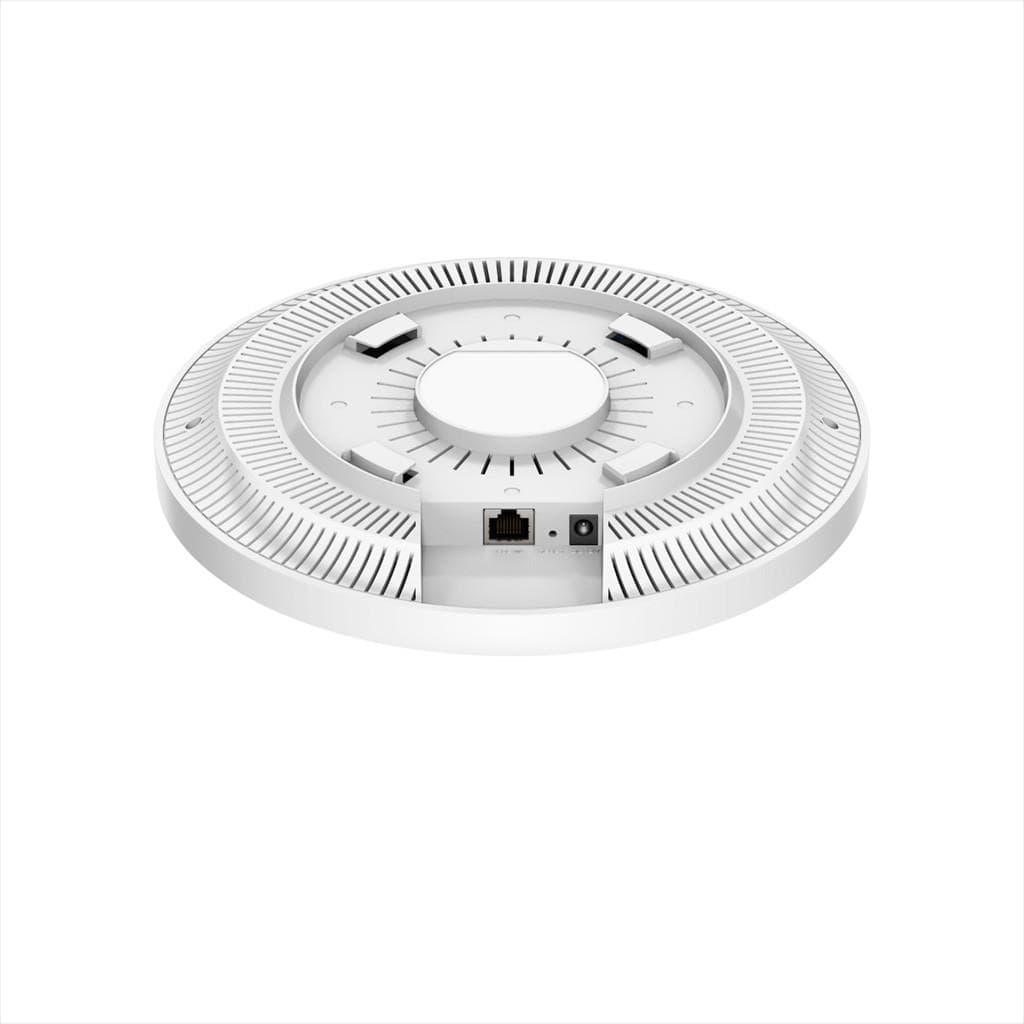

Cudy AP1200 AC1200 Wireless Access Point AC1200 dual-band Wi-Fi · 867 Mbps at 5 GHz · 300 Mbps at 2.4 GHz · Passive PoE Dual-band 2×2 MIMO wireless access point with beamforming and wall-mount installation Features Dual-band AC1200 wireless performance with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz 2×2 MIMO configuration on both the 5 GHz and 2.4 GHz bands Beamforming technology for improved wireless coverage and connection performance Maximum wireless range of up to 170 m, depending on the environment One 10/100 Mbps RJ45 Ethernet port with passive PoE power support 24V passive PoE operation for simplified installation Built-in WPS and Reset buttons Status LEDs for 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, and system activity Wall-mountable design for flexible placement Designed for operation in temperatures from -20°C to 60°C Wireless Specifications Wireless standard: Wi-Fi 5 / 802.11ac Wireless class: AC1200 5 GHz Wi-Fi speed: Up to 867 Mbps 2.4 GHz Wi-Fi speed: Up to 300 Mbps 5 GHz wireless streams: 2T2R (2×2 MIMO) 2.4 GHz wireless streams: 2T2R (2×2 MIMO) 5 GHz maximum antenna gain: 4.64 dBi 2.4 GHz maximum antenna gain: 5.31 dBi Antennas: 2 internal antennas for 5 GHz and 2 internal antennas for 2.4 GHz Beamforming: Supported Maximum range: Up to 170 m Hardware Model: AP1200 1.0 CPU: 580 MHz single-core processor Flash storage: 8 MB (64 Mbit) NOR System memory: 64 MB (512 Mbit) DDR2 Ethernet ports: 1 × 10/100 Mbps RJ45 Ethernet power support: Passive PoE Physical buttons: WPS and Reset Status indicators: 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, and system LEDs Power Power input: Passive PoE via Ethernet port Passive PoE voltage: 24V Power adapter input: 100–240V AC, 50/60 Hz Power adapter output: 24V passive PoE Maximum power consumption: 12 W Idle power consumption: 2.5 W Reliability and Protection ESD protection: 4 kV contact and 8 kV air Surge protection — power: 2 kV differential mode and 4 kV common mode Surge protection — RJ45: 4 kV common mode Standards: IEC/EN 61000-4-5, Level 4 Certifications: FCC and CE Physical Specifications Installation: Wall-mount Dimensions: 231.9 × 57.1 mm Product weight: 415 g Operating temperature: -20°C to 60°C
