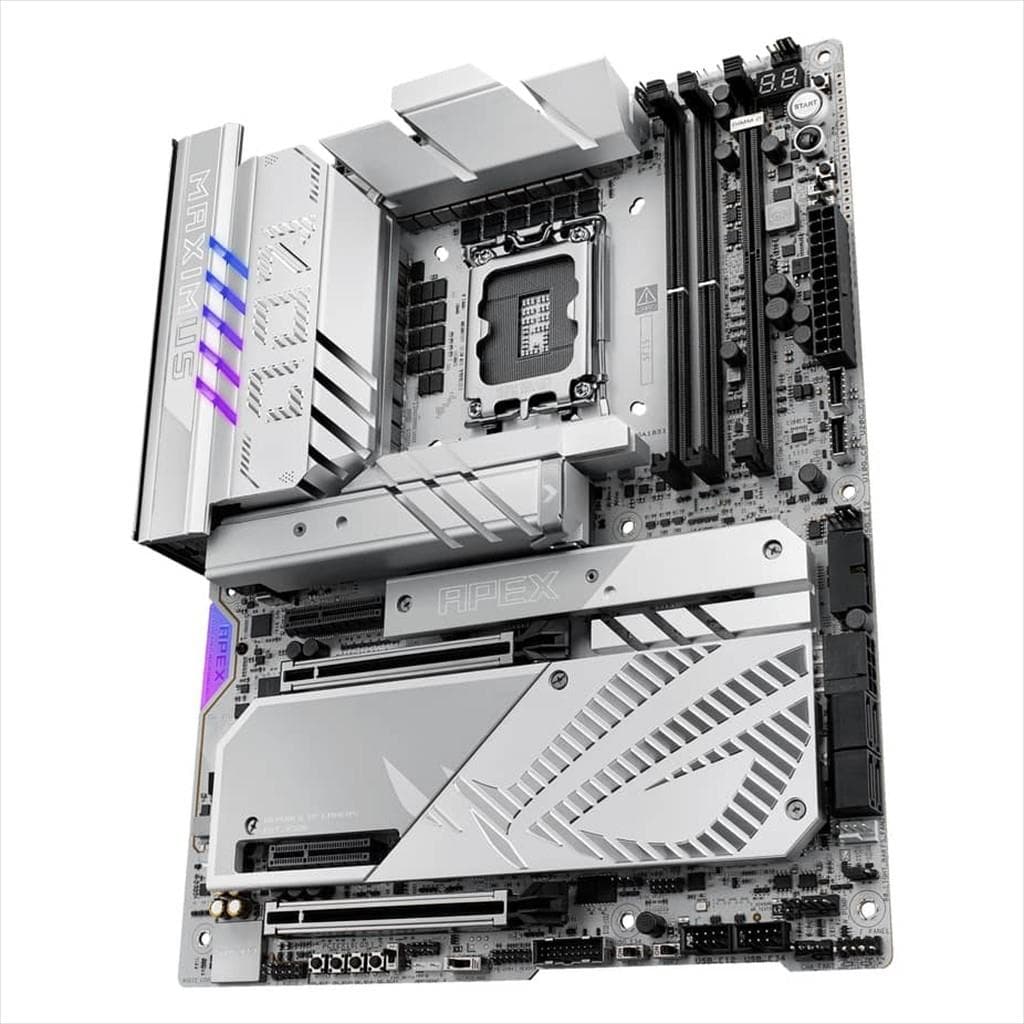

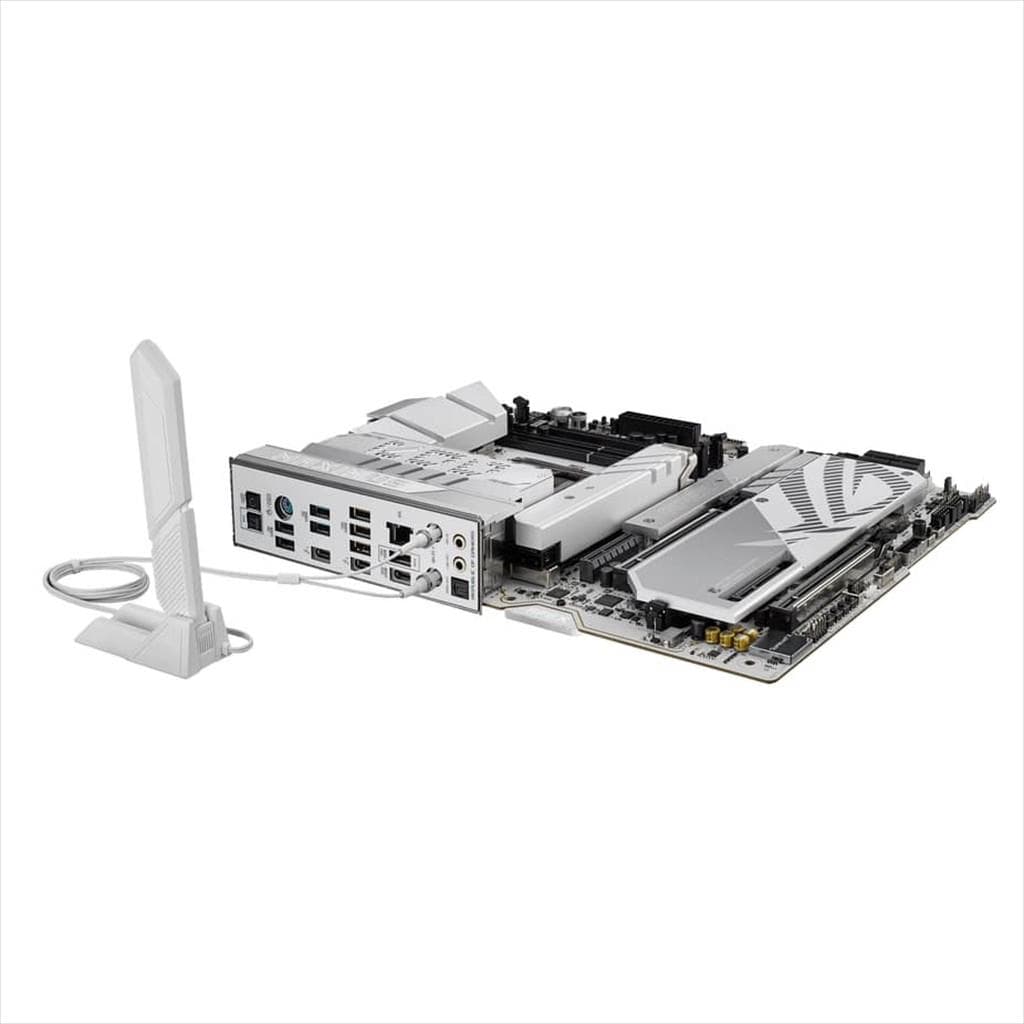

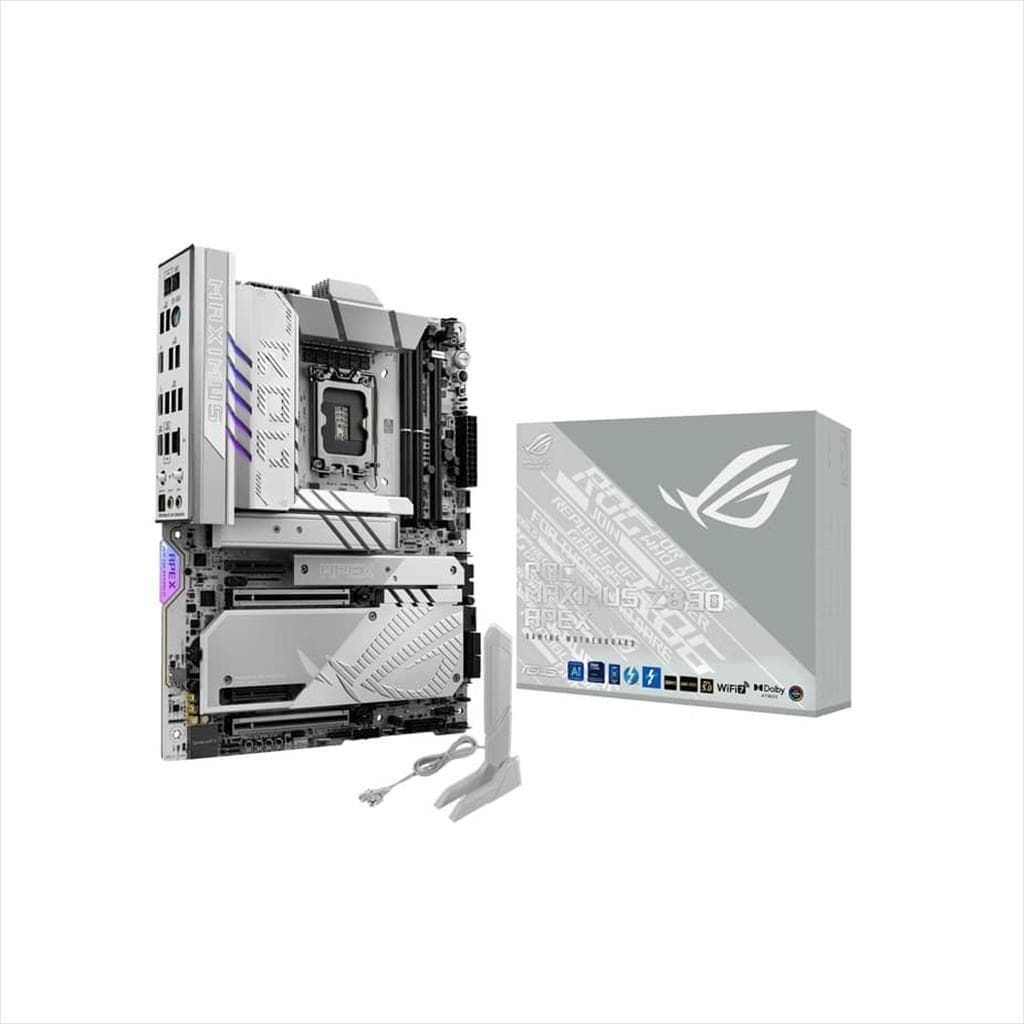

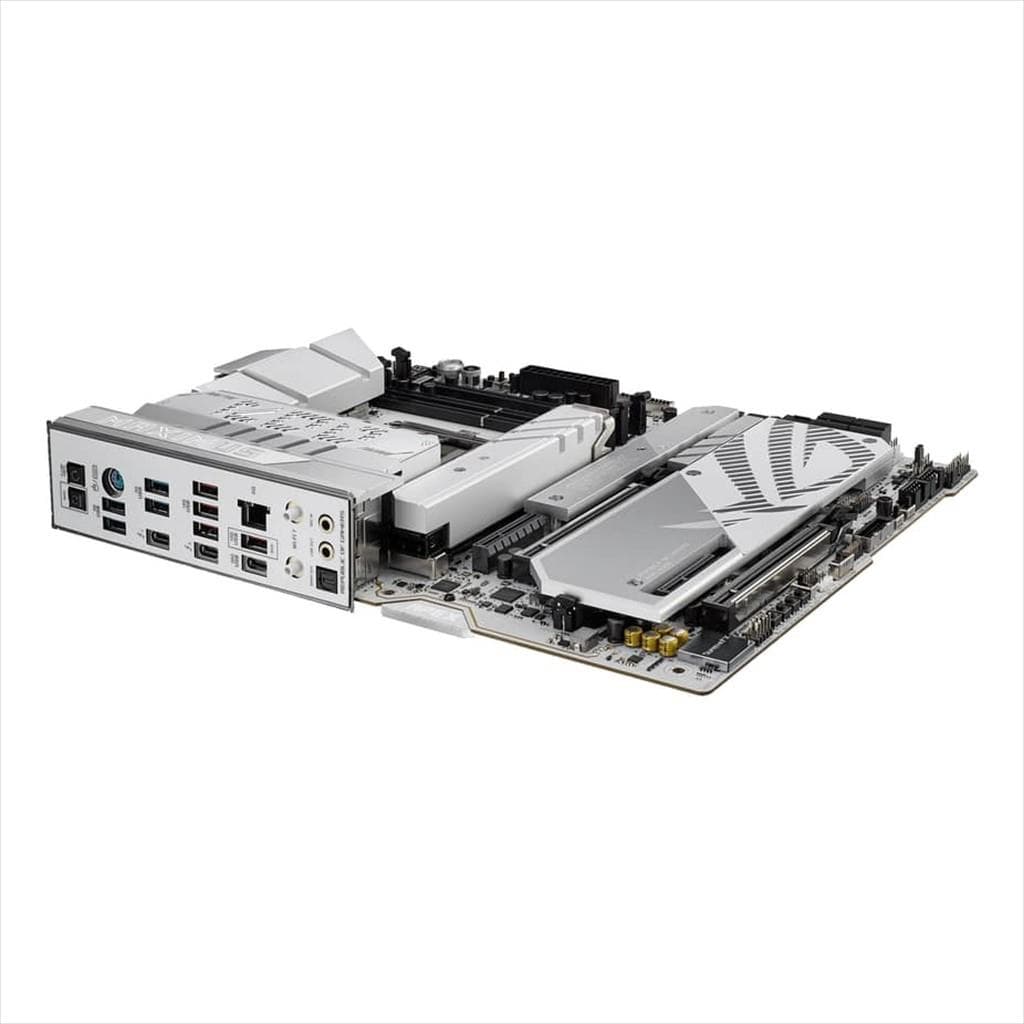

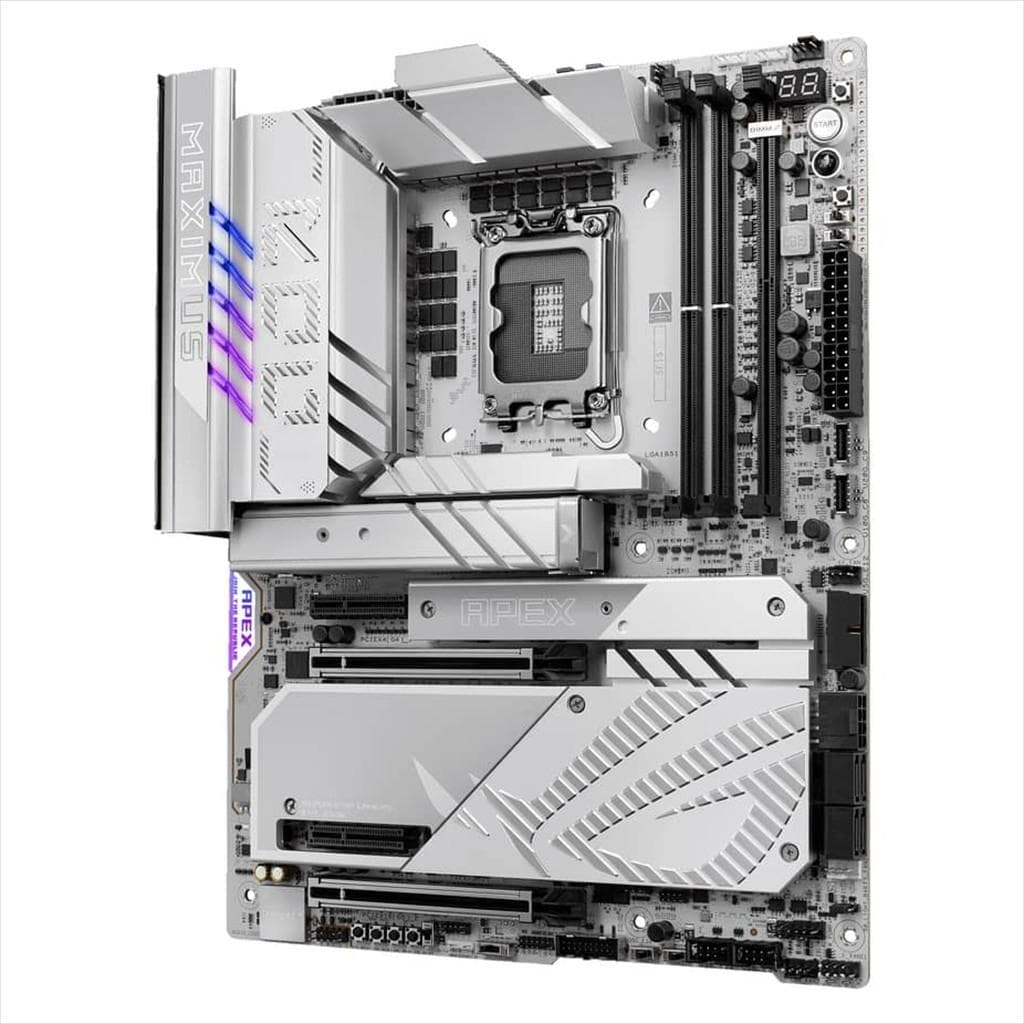

MB 1851 Z890 ASUS ROG MAXIMUS Z890 APEX, 4xDDR5 9600MHz(OC), 2xPCIex16 5.0, 1xPCIex4, 1xPCIex1, 4xM.2, 4xSATAIII, DP, 5GbE LAN, 90MB1IP0-M0EAY0

Опис

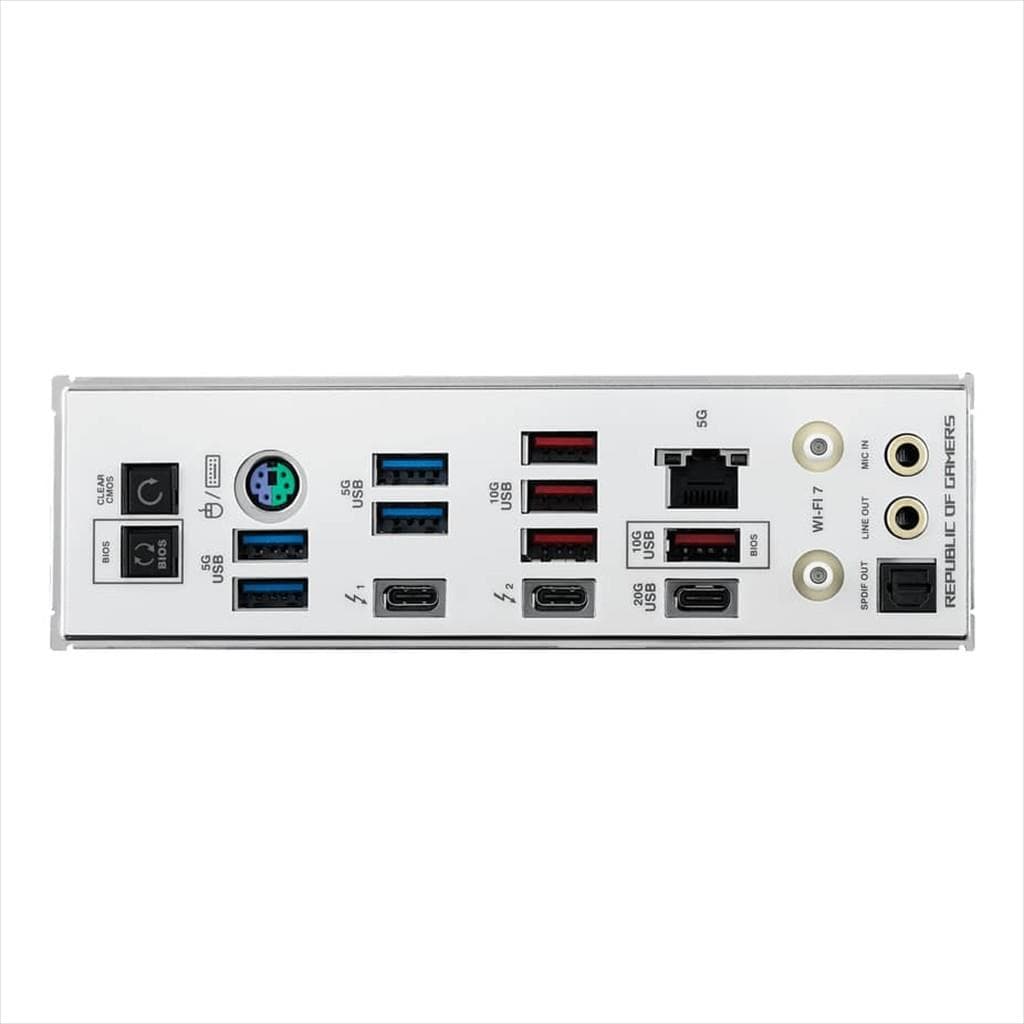

Model Name: Asus ROG Maximus Z890 Apex (LGA 1851) DDR5 Premium ATX gaming/OC motherboard · Intel Z890 · LGA 1851 · DDR5 Wi‑Fi 7 & 5G LAN · PCIe 5.0 x16 · Up to 96 GB DDR5 @ 9000 MT/s (OC) Features ROG Maximus Z890 Apex ATX board for Intel LGA 1851 processors High-end Intel Z890 chipset with Dual BIOS and integrated I/O shield Extreme memory overclocking: 2 × DDR5 DIMM slots, up to 96 GB @ 9000 MT/s (OC), with Intel XMP support and ECC capability Advanced networking with 5 Gbit/s LAN plus next‑gen Wi‑Fi 7 and Bluetooth 5.4 PCIe 5.0 graphics support via 2 × full‑length PCIe 5.0 x16 mechanical slots Extensive M.2 storage: 3 × PCIe 5.0 x4 and 1 × PCIe 4.0 x4 M.2 slots, plus 4 × SATA 6G ports Strong power delivery with 22+1+2+2 VRM power stages for high-end CPUs and overclocking Comprehensive cooling with VRM heatsinks, M.2 heatsinks and rear backplate Rich rear I/O: USB4 Gen 3×2, USB‑C and multiple USB 3.x Type‑A ports ASUS Aura Sync RGB lighting with multiple digital RGB headers High-quality audio powered by Realtek ALC4080 codec White ROG design aesthetic to match light‑themed builds Specification Form factor: ATX (305 × 244 mm) Series: ROG Primary color: White Chipset: Intel Z890 CPU manufacturer: Intel CPU socket: LGA 1851 Memory type: DDR5 DIMM Memory slots: 2 × DIMM Max memory capacity: 96 GB Max memory speed (OC): 9000 MT/s ECC support: Yes Performance profile: Intel XMP LAN: 1 × 5 Gbit/s Ethernet port Wi‑Fi: Wi‑Fi 7 Bluetooth: 5.4 RGB lighting: Yes (RGB) Lighting ecosystem: ASUS Aura Sync Expansion slots: 2 × PCIe 5.0 x16 mechanical, 2 × PCIe 4.0 x4 mechanical Storage: 3 × M.2 PCIe 5.0 x4, 1 × M.2 PCIe 4.0 x4, 4 × SATA 6G External USB: • 2 × USB4 Gen 3×2 Type‑C • 1 × USB 3.2 Type‑C • 4 × USB 3.1 Type‑A • 4 × USB 3.0 (USB 3.2 Gen1) Type‑A Internal headers: • 2 × CPU 8‑pin power connectors • 2 × USB 3.0/3.1/3.2 internal Type‑C headers (up to 2 ports) • 2 × USB 3.0 internal headers (up to 4 ports) • 2 × USB 2.0 internal headers (up to 4 ports) • 3 × digital RGB (3‑pin 5 V D‑G) headers • Front panel audio header: Yes Fan & cooling: 9 × 4‑pin fan connectors Heatsinks: VRM heatsinks, M.2 heatsinks, rear backplate Watercooling: No dedicated back‑connect / integrated waterblock Back‑connect design: No Dual BIOS: Yes Built‑in I/O shield: Yes Audio codec: Realtek ALC4080 VRM power stages: 22+1+2+2
