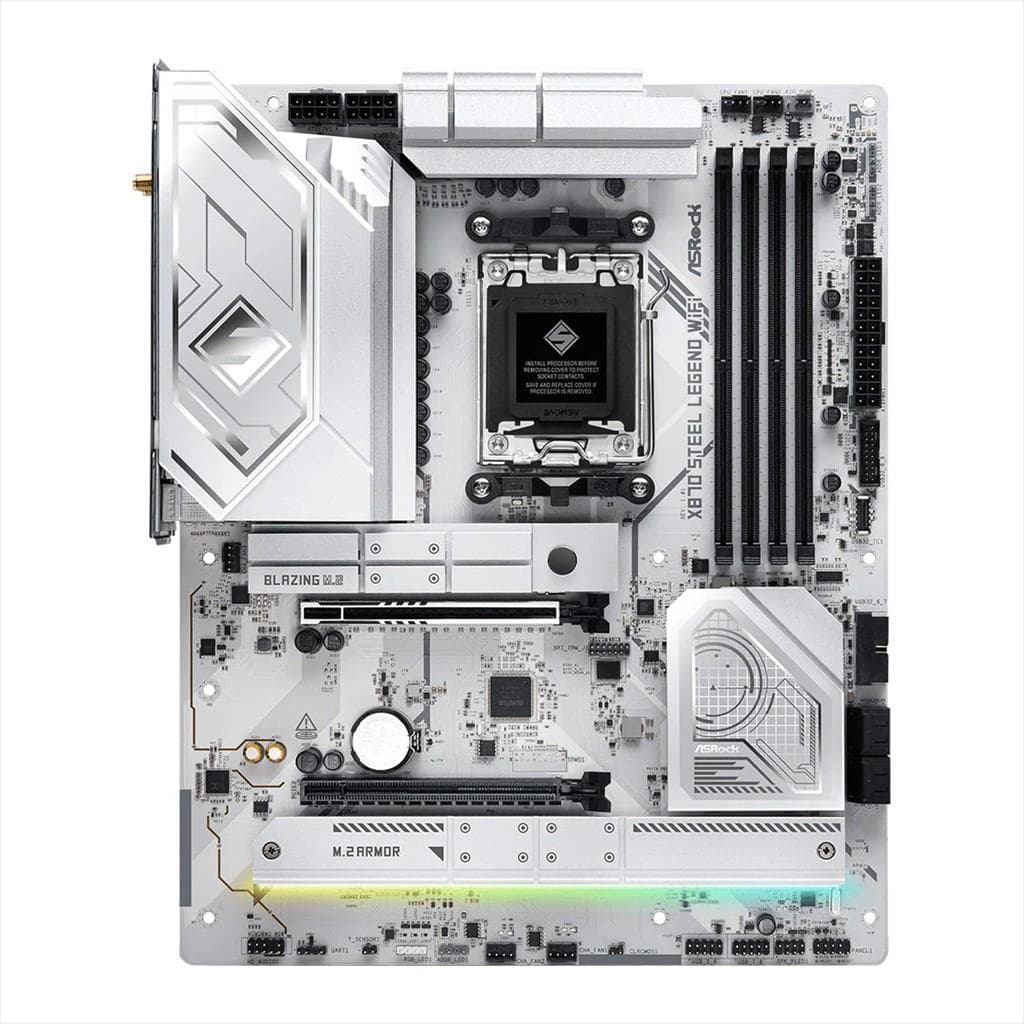

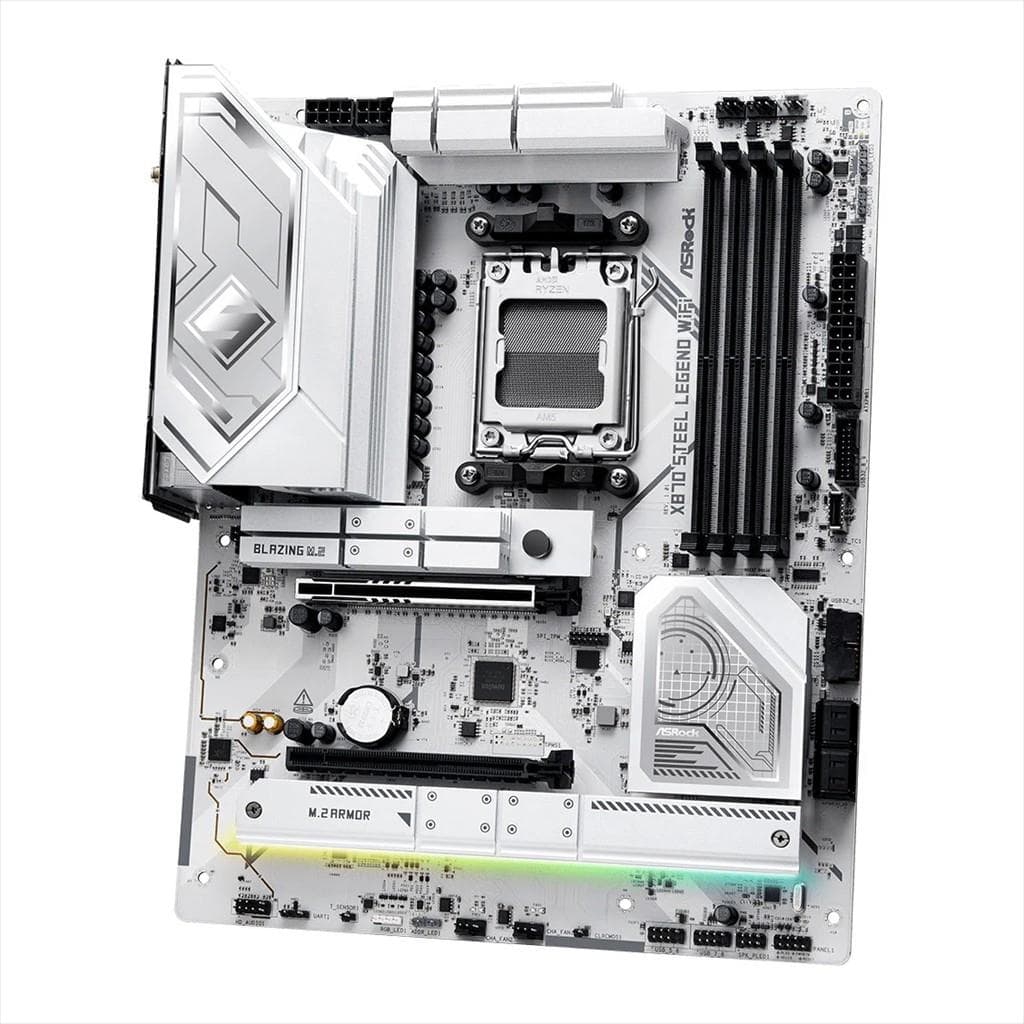

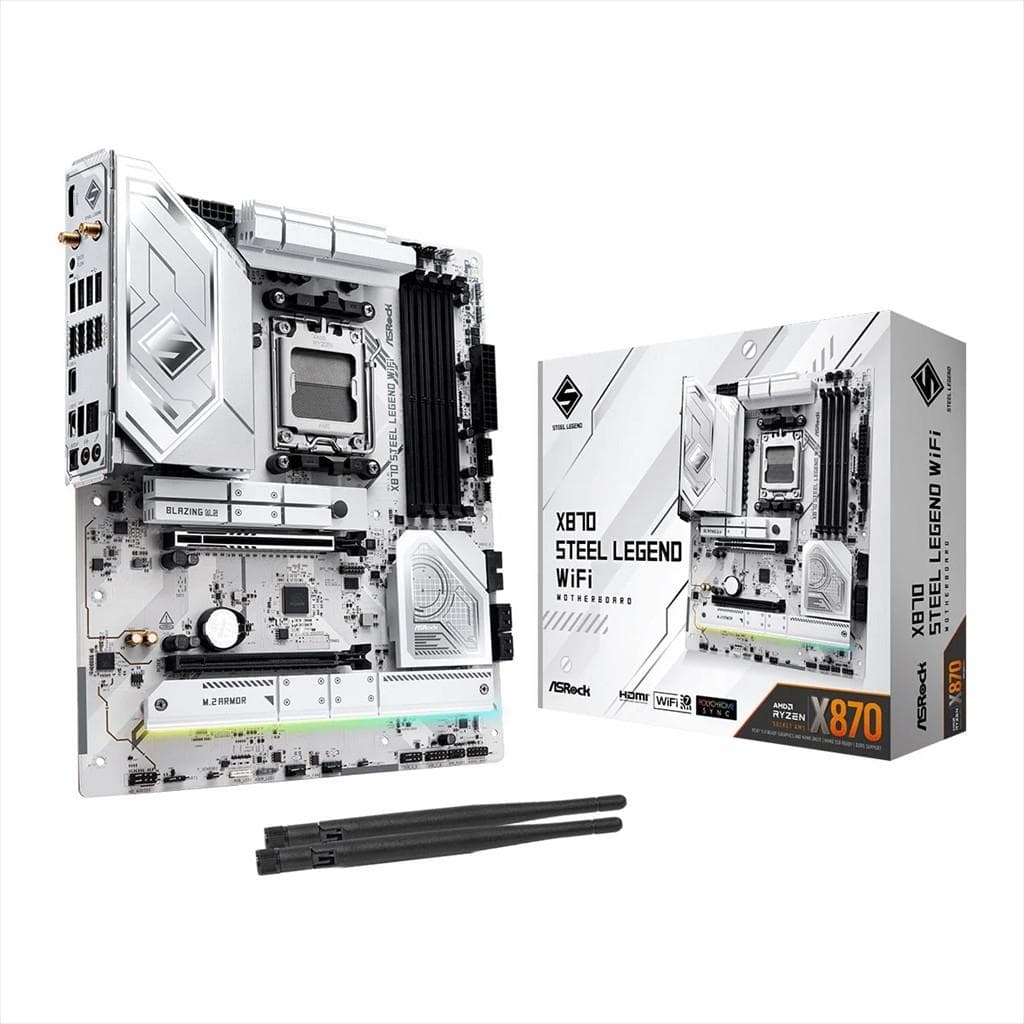

MB AM5 X870 STEEL LEGEND ASROCK 4xDDR5 8000(OC),1xPCIe5.0x16,1xPCIe4.0x16,1xM.2 Gen5,2xM.2 Gen4,4xSATAIII,HDMI,DP

Опис

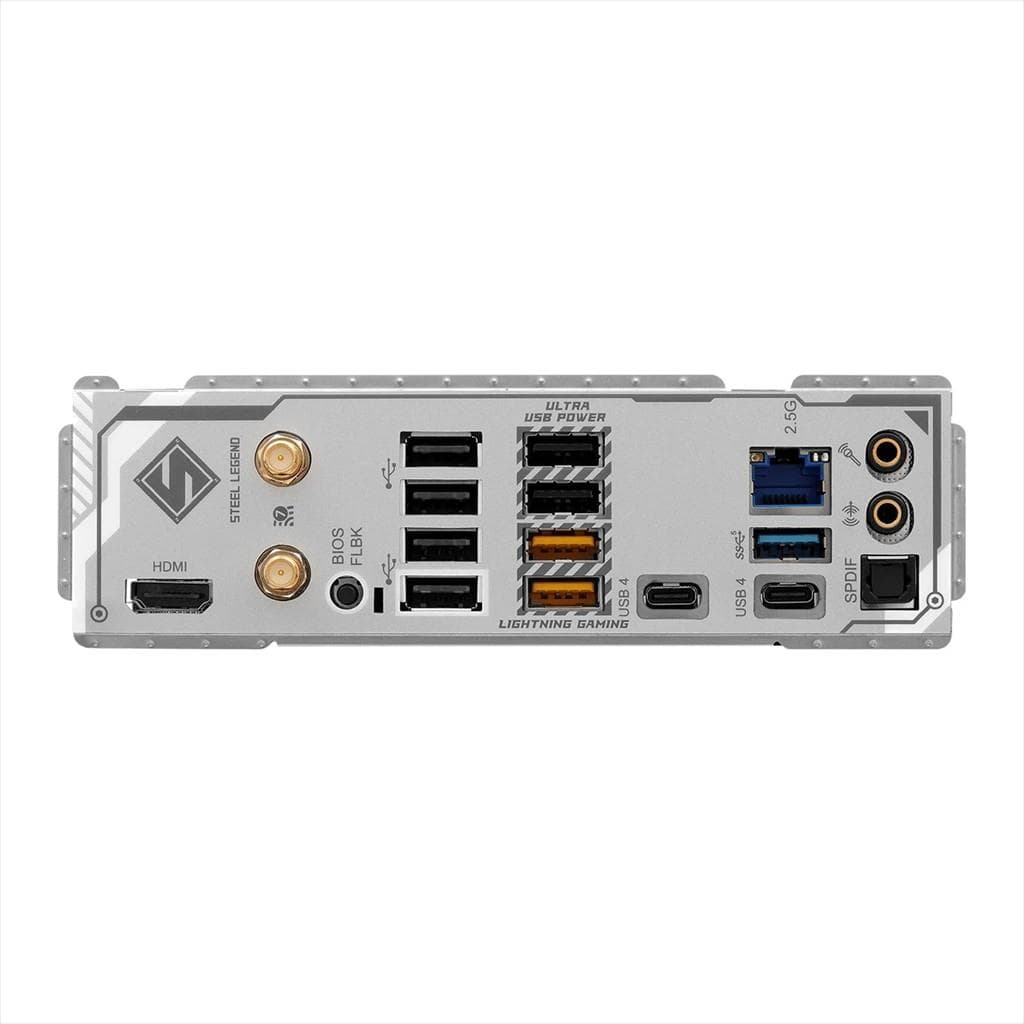

Model Name: ASRock X870 Steel Legend WiFi motherboard, socket AM5, AMD X870, ATX, DDR5 ATX AMD X870 gaming/OC motherboard · AM5 · DDR5 up to 8000 MT/s (OC) PCIe 5.0 x16 · USB4 · Wi‑Fi & 2.5G LAN · 3× M.2 (incl. PCIe 5.0) Features Supports AMD AM5 processors on the AMD X870 chipset 4 × DDR5 DIMM slots, up to 256 GB and 8000 MT/s (OC) with ECC support 1 × PCIe 5.0 x16 (x16) and 1 × PCIe 5.0 x16 (wired x4) for next‑gen GPUs and expansion 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) plus 4 × SATA 6G for high-speed storage Rich rear I/O with 2 × USB4 Type‑C, 2 × USB 3.1 Type‑A, 3 × USB 3.0 Type‑A and 4 × USB 2.0 OC‑ready 17‑phase VRM design and BIOS Flashback support Integrated Wi‑Fi and 2.5 Gbit/s LAN for fast, flexible networking 6 × 4‑pin PWM fan headers and M.2 heatsinks for advanced cooling ARGB/RGB headers and onboard lighting for customisable RGB builds High-end audio with Realtek ALC4082 codec Specification Form factor: ATX CPU manufacturer: AMD CPU socket: AM5 Chipset: AMD X870 Dual BIOS: No Memory type: DDR5 DIMM Memory slots: 4 Max memory: 256 GB Max memory speed (OC): 8000 MT/s ECC support: Yes LAN: 1 × 2.5 Gbit/s Wi‑Fi / Bluetooth: Yes Expansion slots: • 2 × PCIe x16 total • 1 × PCIe 5.0 x16 (mechanical) • 1 × PCIe 4.0 x4 (mechanical) Storage: • 1 × M.2 PCIe 5.0 x4 • 2 × M.2 PCIe 4.0 x4 • 1 × M.2 E‑Key • 4 × SATA 6G (internal) Rear USB: • 2 × USB4 Gen 3×2 Type‑C • 2 × USB 3.1 Type‑A • 3 × USB 3.0 (USB 3.2 Gen1) Type‑A • 4 × USB 2.0 Type‑A Internal USB headers: • 1 × USB 3.2 Type‑C header (5 Gb/s) • 2 × USB 3.0 headers (up to 4 ports) • 2 × USB 2.0 headers (up to 4 ports) Display outputs: 1 × HDMI RGB / LED headers: 1 × 12 V RGB (4‑pin 5050), 3 × 12 V RGB (4‑pin 5050) Front panel audio header: Yes CPU power: 2 × 8‑pin Cooling: 6 × 4‑pin fan connectors, M.2 heatsinks Watercooling integration: No Audio codec: Realtek ALC4082 Lighting: RGB Back‑connect design: No VRM phases: 17‑phase VRM (OC feature)
