MB AM4 B550 X GAMING GIGABYTE 4xDDR4 3200Mhz (O.C), HDMI, 1xPCI-E 4.0x16, 1xPCI-Ex 3.0, 2xPCIe 3.0 x1, 2xM.2, 4xSATA3

Опис

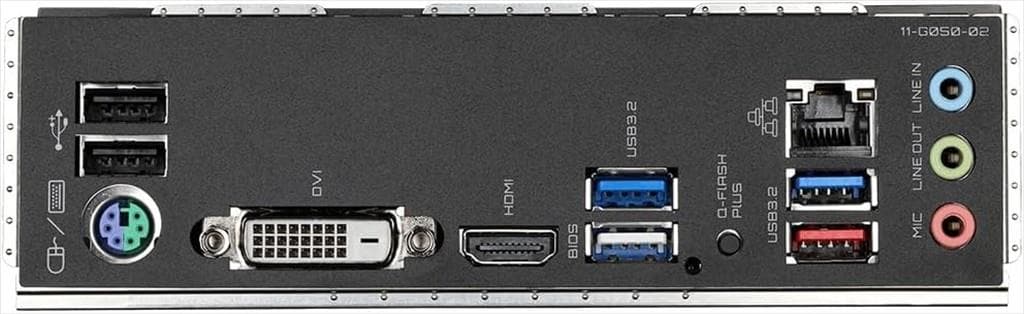

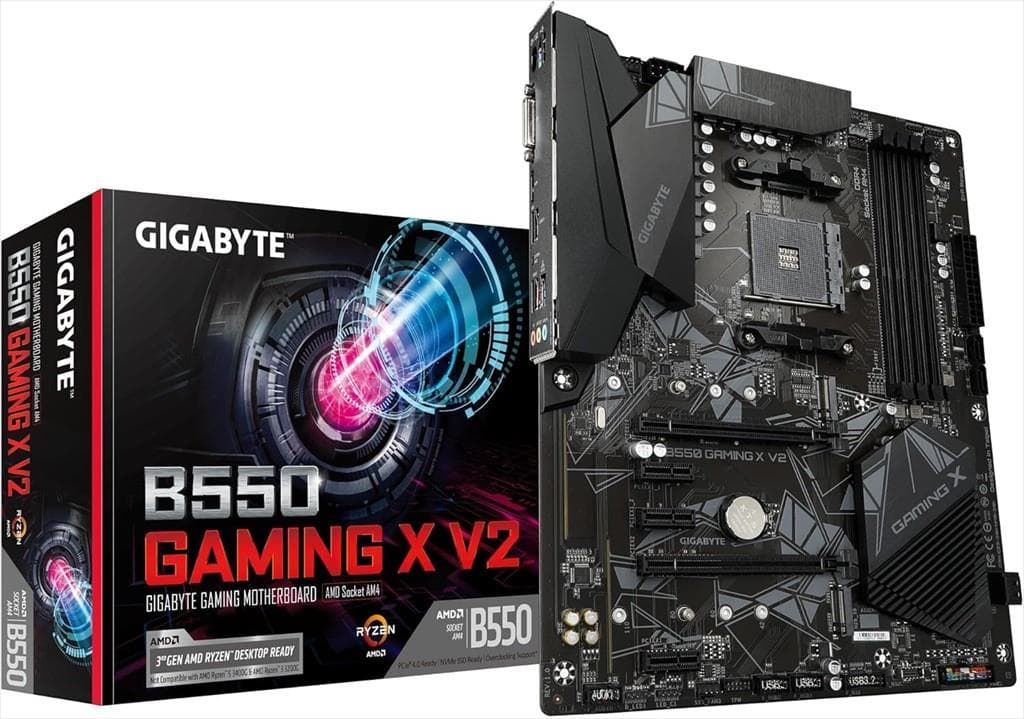

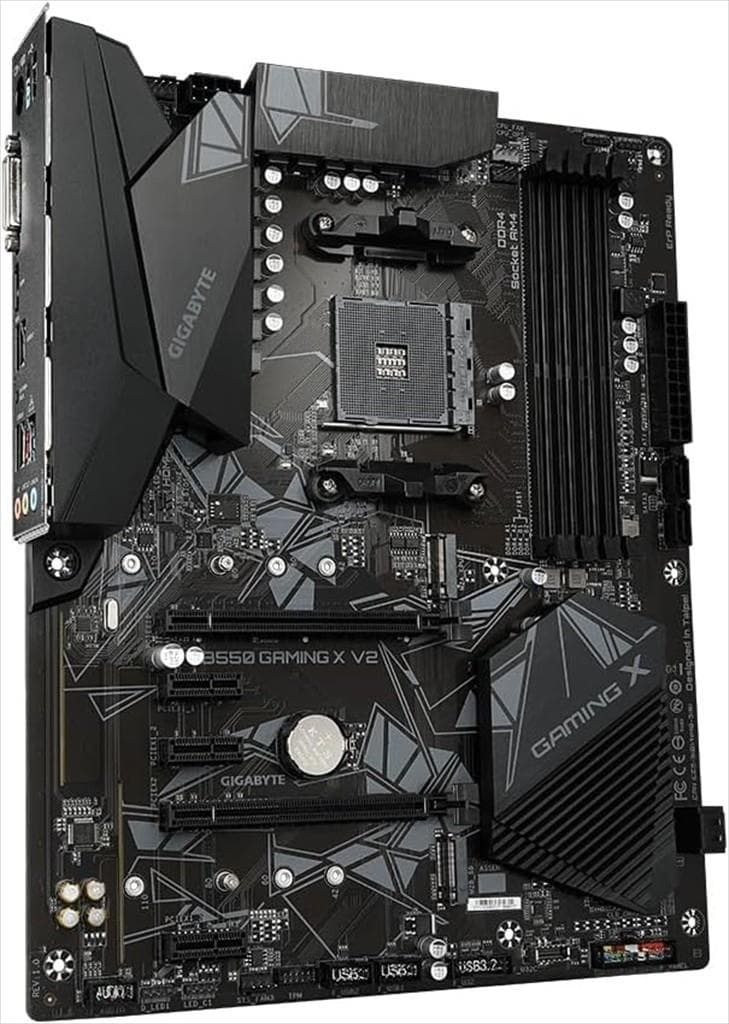

GIGABYTE B550 Gaming X AMD AM4 ATX Motherboard GIGABYTE · AMD B550 chipset · AM4 · ATX · 4× DDR4 · PCIe 4.0 · 2.5GbE LAN The GIGABYTE B550 Gaming X is an ATX motherboard for AMD AM4 processors. It supports dual-channel DDR4 memory up to 128GB, PCIe 4.0 storage, multiple expansion slots, 2.5Gb Ethernet, and CrossFireX multi-GPU configurations. Platform and Design Chipset: AMD B550 CPU socket: AMD AM4 Form factor: ATX Intended use: PC systems Power connector: ATX12V, 24-pin main connector plus 8-pin CPU connector BIOS: 128Mbit AMI UEFI BIOS Memory Support Memory type: DDR4 SDRAM Memory sockets: 4 Maximum memory capacity: 128GB Supported memory speeds: DDR4-3200, 2933, 2667, 2400, and 2133MHz Memory channels: Dual-channel Maximum storage ranks: 8 ECC support: Yes Memory controller: Integrated into the CPU Maximum data density: 8192Mbit Expansion Slots PCIe x16 slots: 2, comprising 1× PCIe x16 and 1× PCIe x4 PCIe x1 slots: 2 Multi-GPU support: AMD CrossFireX Storage SATA ports: 4 M.2 slots: 2 M.2 key type: M key M.2 slot 1: PCIe Gen4.0 M.2 slot 2: PCIe Gen3.0 SATA controller: AMD B550 Supported RAID levels: RAID 0, 1, and 10 External Connections PS/2 port: 1 mouse/keyboard combo port USB-A 3.2 Gen 2: 1 port, up to 10Gb/s USB-C 3.2 Gen 1: 1 port, up to 5Gb/s USB-A 3.2 Gen 1: 3 ports, up to 5Gb/s USB-A 2.0: 2 ports Video outputs: 1× HDMI and 1× DisplayPort Audio connections: Microphone input, line-out, and optical S/PDIF output Network connection: 1× RJ-45 Audio and Networking Audio codec: Realtek Audio CODEC LAN controller: Realtek 2.5GbE LAN USB controller: AMD B550
