MB AM5 X870E TAICHI LITE ASROCK 4xDDR5 8200Mhz (O.C), HDMI, 2xPCI-Ex16 5.0, 4xM.2,6xSATA3,BT 5.4, 90-MXBPA0-A0UAYZ

Опис

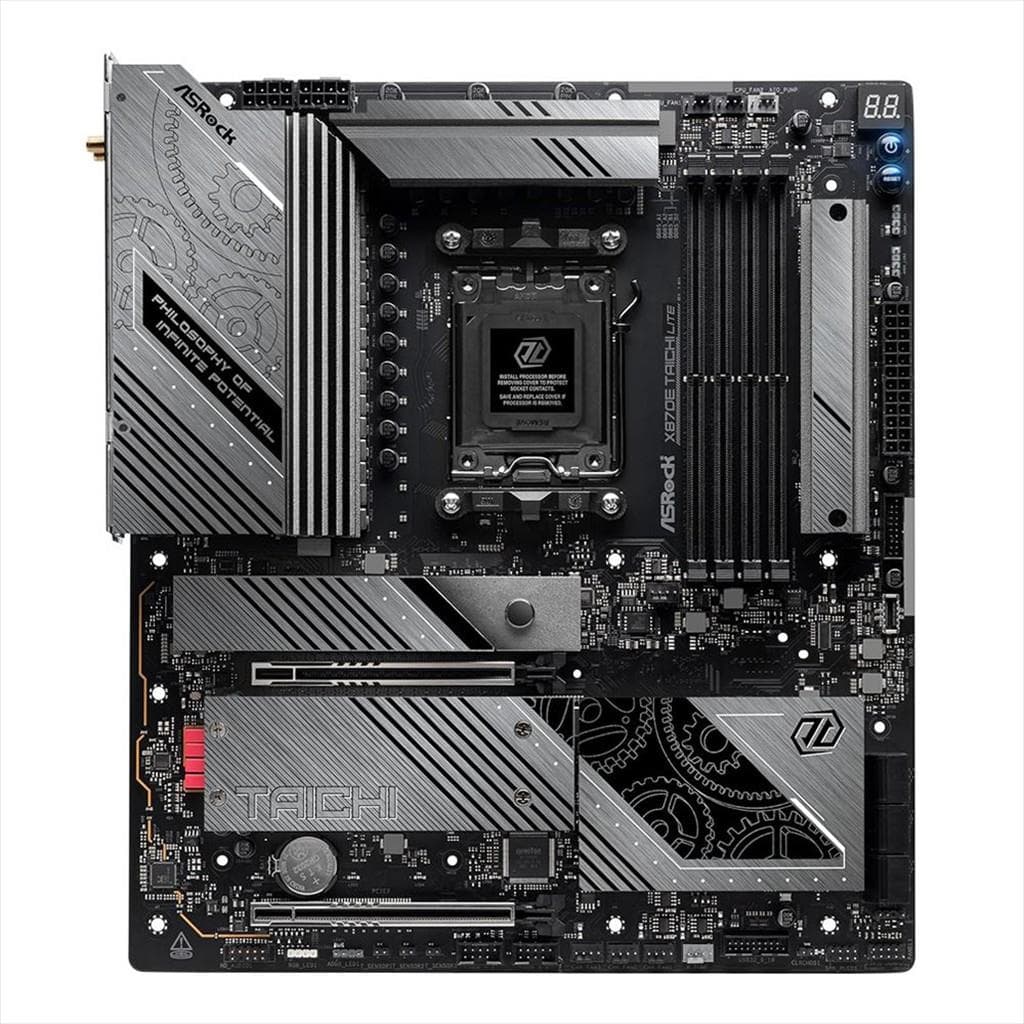

ASRock X870E Taichi Lite AM5 DDR5 EATX Motherboard The ASRock X870E Taichi Lite is a high-performance EATX motherboard designed for AMD Socket AM5 processors. It supports DDR5 memory, PCIe 5.0 graphics, multiple high-speed NVMe storage devices, USB4 connectivity, 5Gbps Ethernet, and Wi-Fi 7 wireless networking. Key Features AMD Socket AM5 platform AMD X870E chipset Supports dual-channel DDR5 memory Up to 256GB system memory capacity PCIe 5.0 graphics support with x16 or x8/x8 operation PCIe Gen5 and Gen4 M.2 storage support USB4 Type-C connectivity up to 40Gbps 5 Gigabit Ethernet Integrated Wi-Fi 7 and Bluetooth 5.4 High-quality Realtek and ESS SABRE audio hardware Memory Memory Type: DDR5 Memory Slots: 4 x DDR5 DIMM Memory Architecture: Dual-channel Maximum Capacity: 256GB Supported Memory: ECC and non-ECC unbuffered memory Maximum Overclocked Speed: DDR5-8200+ (OC) Memory Profiles: AMD EXPO and Intel XMP Expansion Slots 2 x PCIe 5.0 x16 slots Supports x16 or x8/x8 operating modes 1 x vertical M.2 Key E socket for 2230 Wi-Fi/Bluetooth modules Graphics Outputs 1 x HDMI 2.1 TMDS/FRL 8G-compatible port Supports HDR and HDCP 2.3 Maximum HDMI resolution: 4K at 120Hz 2 x USB4 Type-C ports with display output support Maximum USB4 display resolution: 8K at 30Hz Storage 1 x Blazing M.2 socket, Key M, supporting 2280 PCIe Gen5 x4 mode up to 128Gbps 3 x Hyper M.2 sockets, Key M, supporting 2280 PCIe Gen4 x4 mode up to 64Gbps each 6 x SATA3 6.0Gbps connectors Supports NVMe SSD boot drives Supports RAID 0, RAID 1, and RAID 10 for SATA storage Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage Networking Wired LAN: 1 x 5 Gigabit Ethernet port LAN Controller: Realtek RTL8126CG Supported Ethernet Speeds: 10/100/1000/2500/5000Mbps Wireless Standard: Wi-Fi 7, IEEE 802.11be Wireless Configuration: 2x2 Supported Wireless Standards: 802.11a/b/g/n/ac/ax/axe/be Frequency Bands: 2.4GHz, 5GHz, and 6GHz 6GHz Channel Bandwidth: Up to 160MHz Bluetooth: Bluetooth 5.4 MU-MIMO support USB Connectivity 2 x USB4 Type-C ports on the rear panel, up to 40Gbps 2 x USB 3.2 Gen2 Type-A ports on the rear panel 1 x front-panel USB 3.2 Gen2x2 Type-C port, up to 20Gbps 3 x USB 3.2 Gen2 Type-A ports on the rear panel, up to 10Gbps 7 x USB 3.2 Gen1 Type-A ports, including 3 rear and 4 front ports 6 x USB 2.0 ports, including 2 rear and 4 front ports All USB ports feature ESD protection Rear Panel I/O 2 x Wi-Fi antenna connectors 1 x HDMI port 1 x optical S/PDIF output 2 x USB4 Type-C ports 5 x USB 3.2 Gen2 Type-A ports 3 x USB 3.2 Gen1 Type-A ports 2 x USB 2.0 ports 1 x RJ-45 5Gbps LAN port 1 x Clear CMOS button 1 x BIOS Flashback button 1 x line-out jack with gold-plated connector 1 x microphone input jack with gold-plated connector
